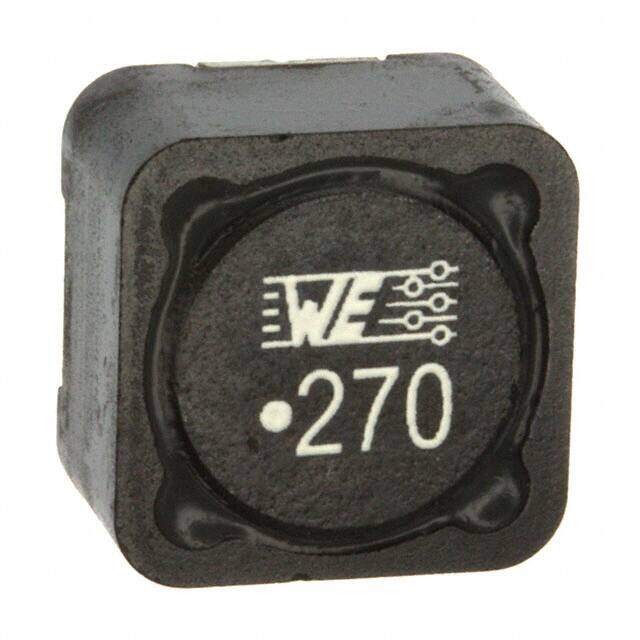

744770127 image
Favorite
744770127 image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-PD Nonstandard 0.472Lx0.472W 12.00mmx12.00mm 27muH
PDF
/
Buying Options
Total Price: USD $2.1
Unit Price: USD $2.1032
≥1 USD $2.1032
≥10 USD $1.97032
≥100 USD $1.82952
≥500 USD $1.66936
≥1000 USD $1.4916
Inventory: 1045
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 16 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Ferrite

Technical

Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-PD
Size / Dimension 0.472Lx0.472W 12.00mmx12.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Resistance 46mOhm
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 3.7A
Shielding Shielded
Depth 12mm
Current Rating 3.7A
Lead Pitch 7mm
Inductance 27μH
Test Frequency 1kHz
DC Resistance (DCR) 46mOhm Max
Max DC Current 3.7A
Frequency - Self Resonant 10MHz
Inductance Frequency - Test 1kHz
Current - Saturation 3.8A
Inductance Tolerance 20%
RMS Current (Irms) 3.7A
Series Resistance 46mOhm

Dimensions

Height 8mm
Height Seated (Max) 0.315 8.00mm
Length 12mm
Width 12mm

Compliance

REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Ratings AEC-Q200
