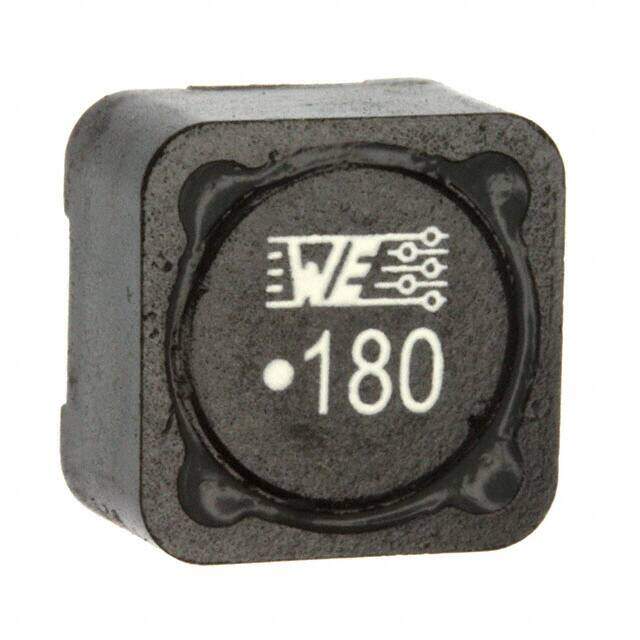

744770118
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 18UH 4.2A 39 MOHM SMD
PDF
/
Buying Options
Total Price: USD $16.36
Unit Price: USD $16.3609
≥1 USD $16.3609
≥10 USD $13.42445
≥100 USD $13.00455
≥500 USD $12.58465
≥1000 USD $12.1657
Inventory: 1088
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-PD
Size / Dimension 0.472Lx0.472W 12.00mmx12.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Resistance 32mOhm
Current Rating (Amps) 4.2A
Shielding Shielded
Inductance 18μH
DC Resistance (DCR) 39mOhm Max
Frequency - Self Resonant 13.2MHz
Inductance Frequency - Test 1kHz
Current - Saturation 5.4A
Inductance Tolerance 20%
Dimensions
Height Seated (Max) 0.315 8.00mm
Compliance
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
