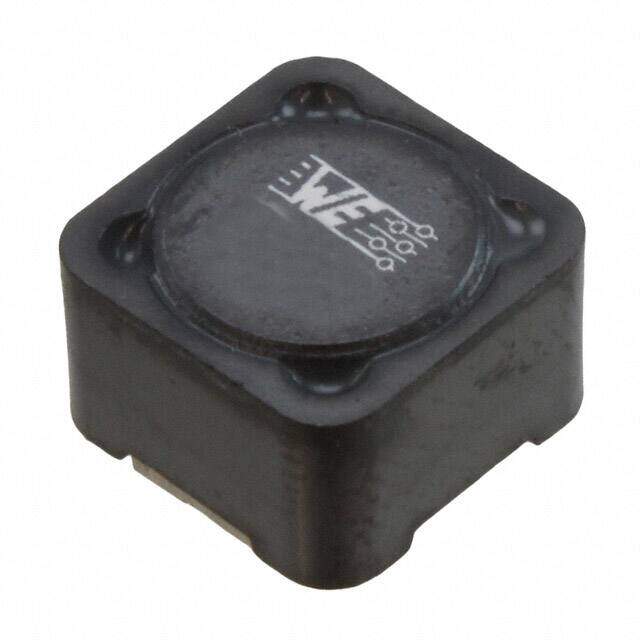

74477008 image
Favorite
74477008 image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description FIXED IND 750NH 19.8A 4 MOHM SMD
PDF
/
Buying Options
Total Price: USD $13.82
Unit Price: USD $13.8225
≥1 USD $13.8225
≥10 USD $11.34205
≥100 USD $10.9877
≥500 USD $10.63335
≥1000 USD $10.279
Inventory: 6501
Minimum: 1
-
+

Technical Details

Compliance

Ratings AEC-Q200
RoHS Status ROHS3 Compliant

Dimensions

Height Seated (Max) 0.315 8.00mm

Technical

Current - Saturation 21A
Inductance Frequency - Test 1kHz
Frequency - Self Resonant 110MHz
DC Resistance (DCR) 4mOhm Max
Inductance 750nH
Shielding Shielded
Current Rating (Amps) 19.8A
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
Tolerance -25% +20%
Size / Dimension 0.472Lx0.472W 12.00mmx12.00mm
Series WE-PD
Packaging Cut Tape (CT)
Operating Temperature -40°C~125°C

Physical

Material - Core Ferrite
Package / Case Nonstandard
Mounting Type Surface Mount

Alternative Model
