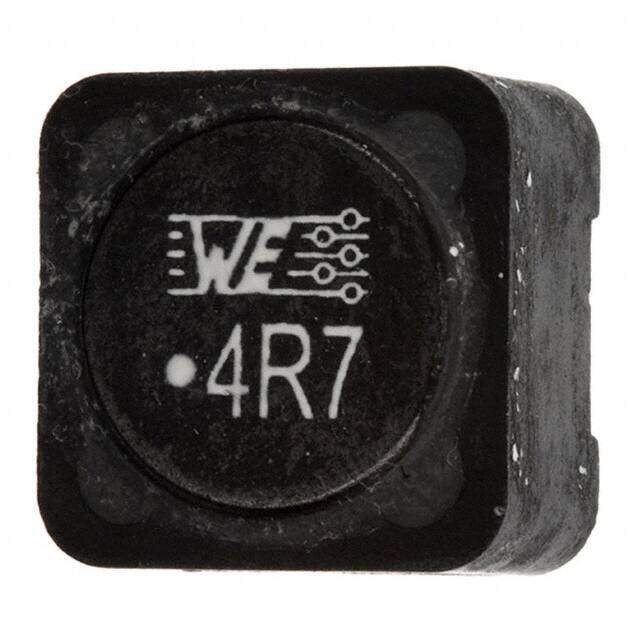

74477004 image
Favorite
74477004 image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-PD Nonstandard 0.472Lx0.472W 12.00mmx12.00mm 4.7muH
PDF
/
Buying Options
Total Price: USD $1.81
Unit Price: USD $1.805038
≥1 USD $1.805038
≥10 USD $1.702869
≥100 USD $1.606472
≥500 USD $1.515544
≥1000 USD $1.429761
Inventory: 1173
Minimum: 1
-
+

Technical Details

Compliance

Ratings AEC-Q200
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Width 12mm
Length 12mm
Height Seated (Max) 0.315 8.00mm
Height 8mm

Technical

Series Resistance 16mOhm
RMS Current (Irms) 8.5A
Inductance Tolerance 40%
Current - Saturation 9.3A
Inductance Frequency - Test 1kHz
Frequency - Self Resonant 31.2MHz
Max DC Current 8.5A
DC Resistance (DCR) 16mOhm Max
Test Frequency 1kHz
Inductance 4.7μH
Current Rating 8.5A
Depth 12mm
Shielding Shielded
Current Rating (Amps) 8.5A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 16mOhm
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance -20% +40%
Size / Dimension 0.472Lx0.472W 12.00mmx12.00mm
Series WE-PD
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Material - Core Ferrite
Weight 4.535924g
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 16 Weeks
