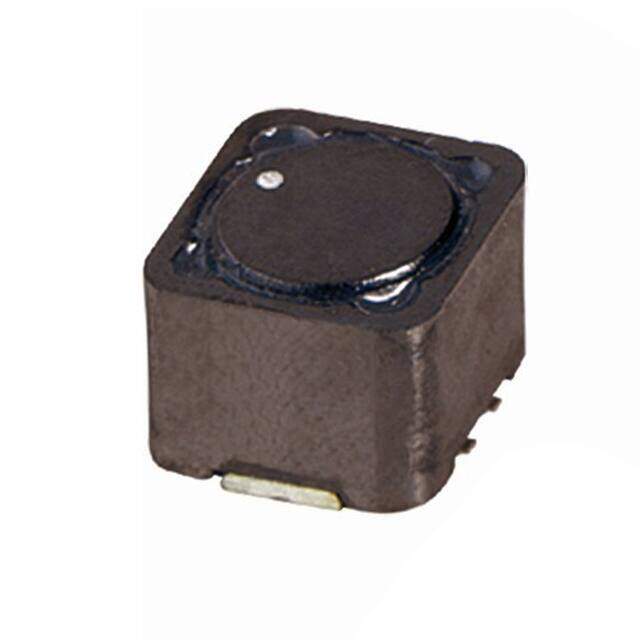

744770015
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD Nonstandard 0.472Lx0.472W 12.00mmx12.00mm 1.5muH
PDF
/
Buying Options
Total Price: USD $12.55
Unit Price: USD $12.55425
≥1 USD $12.55425
≥10 USD $10.3018
≥100 USD $9.97975
≥500 USD $9.6577
≥1000 USD $9.33565
Inventory: 8002
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 12mm
Length 12mm
Height Seated (Max) 0.315 8.00mm
Height 8mm
Technical
Series Resistance 6mOhm
RMS Current (Irms) 10A
Inductance Tolerance 20%
Current - Saturation 12A
Inductance Frequency - Test 1kHz
Frequency - Self Resonant 42MHz
Max DC Current 10A
DC Resistance (DCR) 6mOhm Max
Test Frequency 100kHz
Inductance 1.5μH
Current Rating 10A
Shielding Shielded
Current Rating (Amps) 10A
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 6mOhm
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.472Lx0.472W 12.00mmx12.00mm
Series WE-PD
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 16 Weeks
