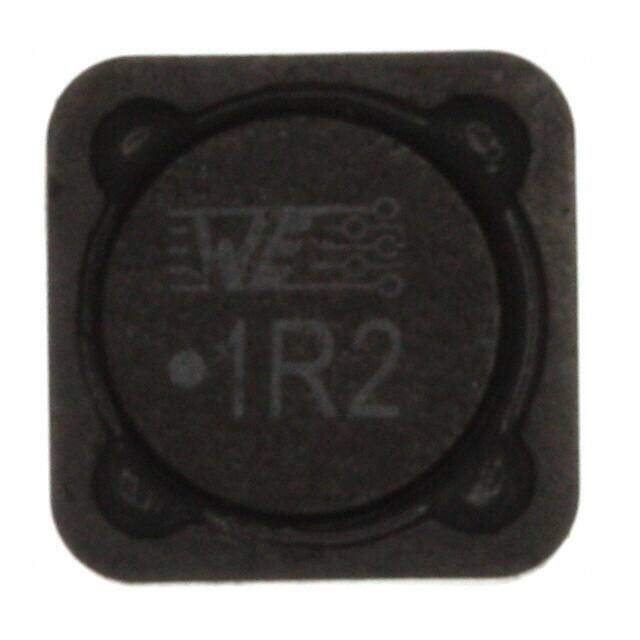

74477001 image
Favorite
74477001 image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-PD Nonstandard 0.472Lx0.472W 12.00mmx12.00mm 1.2muH
PDF
/
Buying Options
Total Price: USD $16.79
Unit Price: USD $16.79315
≥1 USD $16.79315
≥10 USD $13.7788
≥100 USD $13.34845
≥500 USD $12.9181
≥1000 USD $12.48775
Inventory: 1091
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 16 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Weight 4.535924g
Material - Core Ferrite

Technical

Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-PD
Size / Dimension 0.472Lx0.472W 12.00mmx12.00mm
Tolerance -20% +40%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Resistance 7mOhm
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Current Rating (Amps) 12A
Shielding Shielded
Depth 12mm
Current Rating 12A
Inductance 1.2μH
Test Frequency 100kHz
DC Resistance (DCR) 7mOhm Max
Max DC Current 12A
Frequency - Self Resonant 45MHz
Inductance Frequency - Test 1kHz
Current - Saturation 16.6A
Inductance Tolerance 40%
RMS Current (Irms) 12A
Series Resistance 7mOhm

Dimensions

Height 8mm
Height Seated (Max) 0.315 8.00mm
Length 12mm
Width 12mm

Compliance

REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
