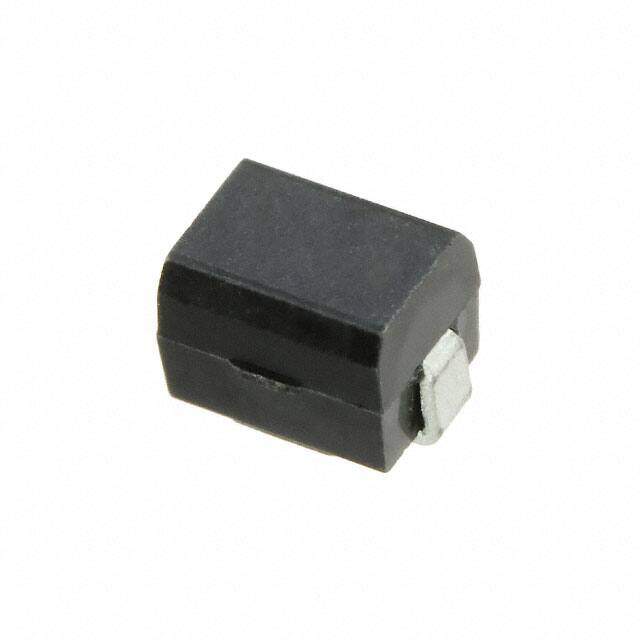

7447669133
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-GFH Nonstandard 0.177Lx0.126W 4.50mmx3.20mm 33muH
PDF
/
Buying Options
Total Price: USD $0.32
Unit Price: USD $0.316419
≥1 USD $0.316419
≥10 USD $0.298505
≥100 USD $0.281611
≥500 USD $0.265673
≥1000 USD $0.250631
Inventory: 1181
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 3.2004mm
Length 4.4958mm
Height Seated (Max) 0.134 3.40mm
Technical
Inductance Tolerance 10%
Inductance Frequency - Test 975kHz
Q @ Freq 35 @ 975kHz
Frequency - Self Resonant 19MHz
Max DC Current 525mA
DC Resistance (DCR) 1.06Ohm Max
Test Frequency 975kHz
Inductance 33μH
Current Rating 525mA
Shielding Unshielded
Current Rating (Amps) 525mA
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±10%
Size / Dimension 0.177Lx0.126W 4.50mmx3.20mm
Series WE-GFH
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Iron Powder
Supplier Device Package 4532
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 14 Weeks
