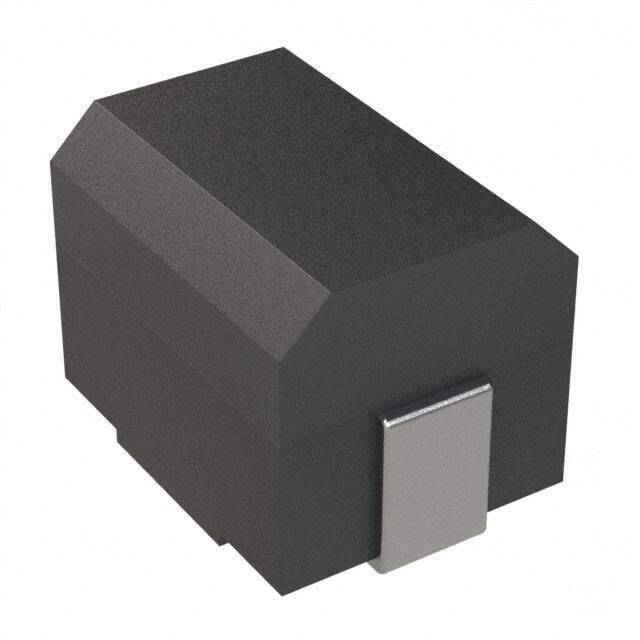

74476630
RoHS
RoHS compliant
RoHS compliantPackage 1812 (4532 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-GF 1812 (4532Metric) 0.177Lx0.126W 4.50mmx3.20mm 1mH
PDF
/
Buying Options
Total Price: USD $0.6
Unit Price: USD $0.59929
≥1 USD $0.59929
≥10 USD $0.565366
≥100 USD $0.533369
≥500 USD $0.503177
≥1000 USD $0.474692
Inventory: 7589
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 1812 (4532 Metric)
Supplier Device Package 1812
Material - Core Ferrite
Technical
Operating Temperature -40°C~105°C
Packaging Tape & Reel (TR)
Series WE-GF
Size / Dimension 0.177Lx0.126W 4.50mmx3.20mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Type Wirewound
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Current Rating (Amps) 30mA
Shielding Unshielded
Depth 3.2mm
Inductance 1mH
DC Resistance (DCR) 50Ohm Max
Max DC Current 30mA
Frequency - Self Resonant 2.9MHz
Q @ Freq 20 @ 252kHz
Inductance Frequency - Test 252kHz
Inductance Tolerance 10%
Dimensions
Height 3.2mm
Height Seated (Max) 0.142 3.60mm
Length 4.5mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
