744765027A
RoHS
RoHS compliant
RoHS compliantPackage 0402 (1005 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description

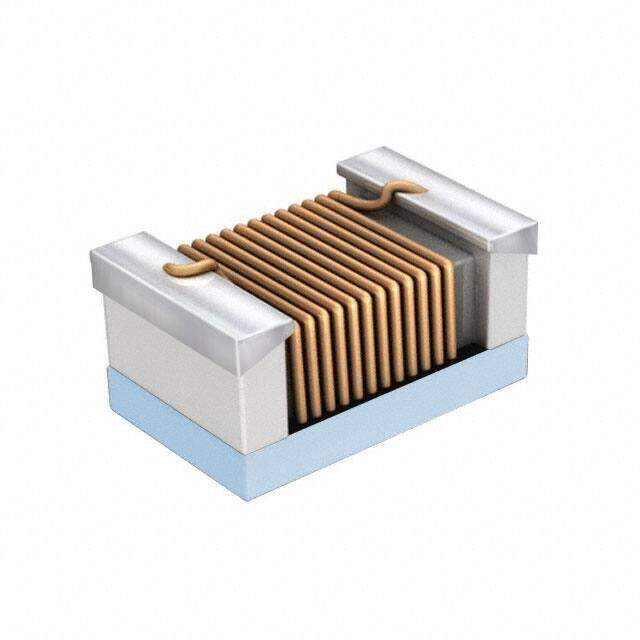

WE-KI 0402 (1005Metric) 0.039Lx0.022W 1.00mmx0.55mm 2.7nH
PDF
/
Buying Options
Total Price: USD $0.37
Unit Price: USD $0.370169
≥1 USD $0.370169
≥10 USD $0.349217
≥100 USD $0.329448
≥500 USD $0.310803
≥1000 USD $0.293207
Inventory: 1548
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 21 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 0402 (1005 Metric)
Number of Pins 2
Supplier Device Package 0402 (1005 Metric)
Material Ceramic
Weight 20mg
Material - Core Ceramic
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-KI
Size / Dimension 0.039Lx0.022W 1.00mmx0.55mm
Tolerance ±0.2nH
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Resistance 120mOhm
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Ceramic, Wirewound
Current Rating (Amps) 640mA
Shielding Unshielded
Depth 550μm
Current Rating 640mA
Frequency 250MHz
Case Code (Metric) 1005
Case Code (Imperial) 0402
Inductance 2.7nH
Test Frequency 250MHz
DC Resistance (DCR) 120mOhm Max
Max DC Current 640mA
Frequency - Self Resonant 6GHz
Q @ Freq 16 @ 250MHz
Inductance Frequency - Test 250MHz
Q Factor 16
Series Resistance 120mOhm
Dimensions
Height 500μm
Height Seated (Max) 0.024 0.60mm
Length 1mm
Width 550μm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
