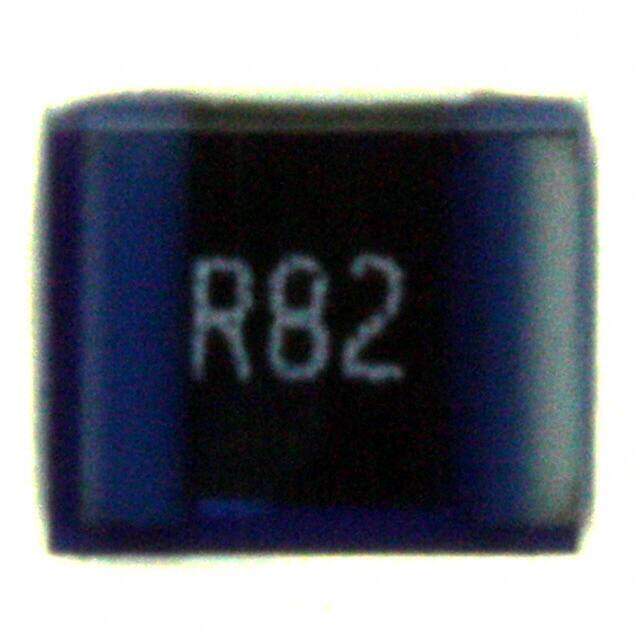

744762282A
RoHS
RoHS compliant
RoHS compliantPackage 1008 (2520 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-KI 1008 (2520Metric) 0.102Lx0.083W 2.60mmx2.10mm 820nH
PDF
/
Buying Options
Total Price: USD $0.38
Unit Price: USD $0.382767
≥1 USD $0.382767
≥10 USD $0.361103
≥100 USD $0.340666
≥500 USD $0.321378
≥1000 USD $0.303181
Inventory: 7421
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 1008 (2520 Metric)
Supplier Device Package 1008 (2520 Metric)
Material Ceramic
Weight 20mg
Material - Core Ceramic
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-KI
Size / Dimension 0.102Lx0.083W 2.60mmx2.10mm
Tolerance ±5%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Resistance 2.3Ohm
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Ceramic, Wirewound
Current Rating (Amps) 180mA
Shielding Unshielded
Current Rating 180mA
Frequency 100MHz
Case Code (Metric) 2520
Case Code (Imperial) 1008
Inductance 820nH
Test Frequency 100MHz
DC Resistance (DCR) 2.3Ohm Max
Max DC Current 180mA
Frequency - Self Resonant 350MHz
Q @ Freq 45 @ 100MHz
Inductance Frequency - Test 25MHz
Q Factor 45
Inductance Tolerance 5%
Series Resistance 2.3Ohm
Dimensions
Height 1.6mm
Height Seated (Max) 0.075 1.90mm
Length 2.5mm
Width 2mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
