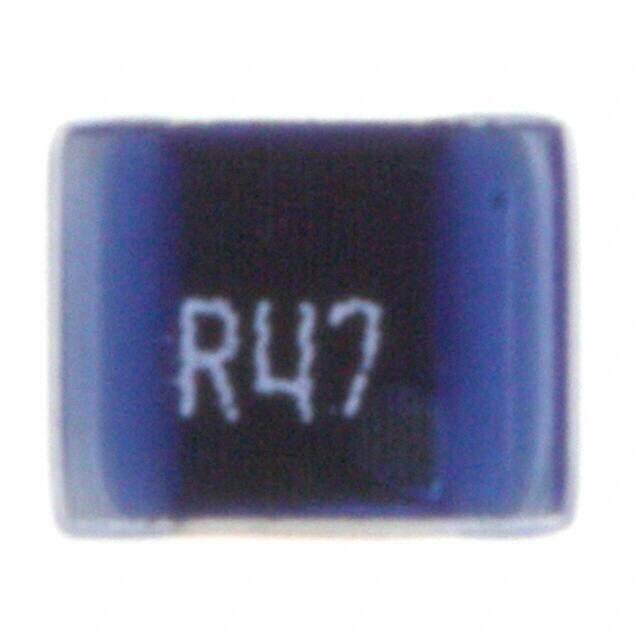

744762247A
RoHS
RoHS compliant
RoHS compliantPackage 1008 (2520 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-KI 1008 (2520Metric) 0.102Lx0.083W 2.60mmx2.10mm 470nH
PDF
/
Buying Options
Total Price: USD $0.39
Unit Price: USD $0.387684
≥1 USD $0.387684
≥10 USD $0.365746
≥100 USD $0.34504
≥500 USD $0.325504
≥1000 USD $0.307086
Inventory: 1162
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 2mm
Length 2.5mm
Height Seated (Max) 0.075 1.90mm
Height 1.6mm
Technical
Series Resistance 1.17Ohm
Inductance Tolerance 5%
Q Factor 45
Inductance Frequency - Test 25MHz
Q @ Freq 45 @ 100MHz
Frequency - Self Resonant 480MHz
Max DC Current 420mA
DC Resistance (DCR) 1.17Ohm Max
Test Frequency 100MHz
Inductance 470nH
Case Code (Imperial) 1008
Case Code (Metric) 2520
Frequency 100MHz
Current Rating 420mA
Shielding Unshielded
Current Rating (Amps) 420mA
Composition Ceramic, Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 900mOhm
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±5%
Size / Dimension 0.102Lx0.083W 2.60mmx2.10mm
Series WE-KI
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Ceramic
Weight 20mg
Material Ceramic
Supplier Device Package 1008 (2520 Metric)
Package / Case 1008 (2520 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
