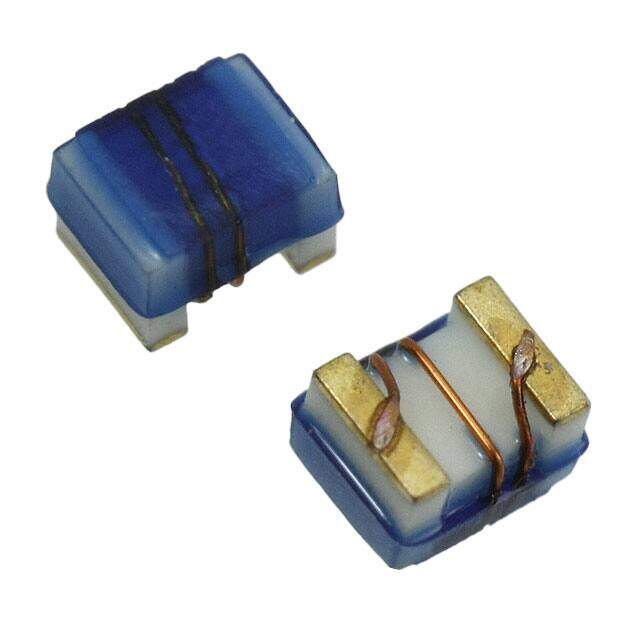

744762233GA
RoHS
RoHS compliant
RoHS compliantPackage 1008 (2520 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
ROHS3Compliant Wirewound Active Tape & Reel (TR) fixed air core inductor -40C~125C 570MHz 900mOhm Max 330nH
PDF
/
Buying Options
Total Price: USD $0.37
Unit Price: USD $0.3696
≥1 USD $0.3696
≥10 USD $0.35552
≥100 USD $0.30536
≥500 USD $0.28072
Inventory: 2011
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mounting Type Surface Mount
Package / Case 1008 (2520 Metric)
Supplier Device Package 1008
Material - Core Ceramic
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-KI
Size / Dimension 0.098Lx0.079W 2.50mmx2.00mm
Tolerance ±2%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 500mA
Shielding Unshielded
Inductance 330nH
DC Resistance (DCR) 900mOhm Max
Frequency - Self Resonant 570MHz
Q @ Freq 45 @ 100MHz
Inductance Frequency - Test 25MHz
Dimensions
Height Seated (Max) 0.071 1.80mm
Compliance
RoHS Status ROHS3 Compliant
