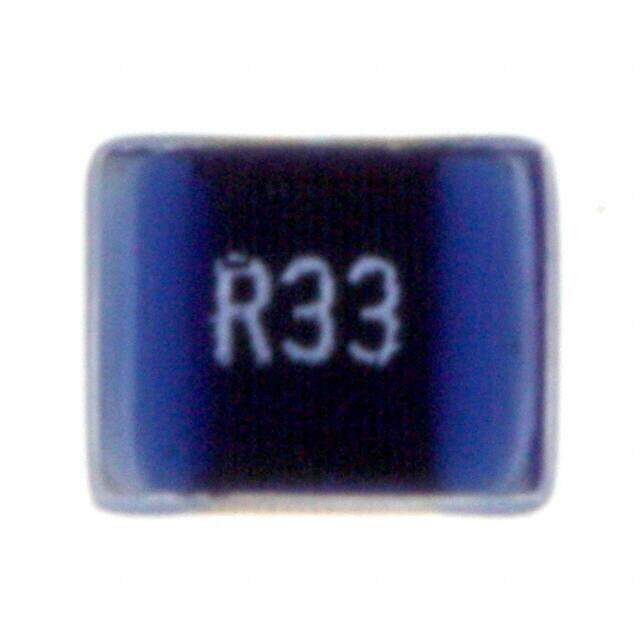

744762233A
RoHS
RoHS compliant
RoHS compliantPackage 1008 (2520 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-KI 1008 (2520Metric) 0.102Lx0.083W 2.60mmx2.10mm 330nH
PDF
/
Buying Options
Total Price: USD $3.96
Unit Price: USD $3.9596
≥1 USD $3.9596
≥10 USD $3.249
≥100 USD $3.14735
≥500 USD $3.0457
≥1000 USD $2.94405
Inventory: 980
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 2mm
Length 2.5mm
Height Seated (Max) 0.075 1.90mm
Height 1.6mm
Technical
Series Resistance 900mOhm
Inductance Tolerance 5%
Q Factor 45
Inductance Frequency - Test 25MHz
Q @ Freq 45 @ 100MHz
Frequency - Self Resonant 570MHz
Max DC Current 500mA
DC Resistance (DCR) 900mOhm Max
Test Frequency 100MHz
Inductance 330nH
Case Code (Imperial) 1008
Case Code (Metric) 2520
Frequency 100MHz
Current Rating 500mA
Shielding Unshielded
Current Rating (Amps) 500mA
Composition Ceramic, Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 330mOhm
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±5%
Size / Dimension 0.102Lx0.083W 2.60mmx2.10mm
Series WE-KI
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Ceramic
Weight 20mg
Material Ceramic
Supplier Device Package 1008 (2520 Metric)
Package / Case 1008 (2520 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
