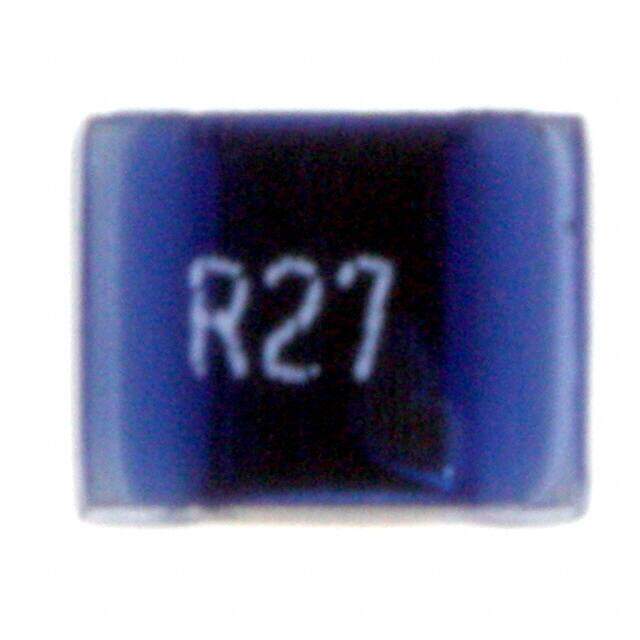

744762227A
RoHS
RoHS compliant
RoHS compliantPackage 1008 (2520 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-KI 1008 (2520Metric) 0.102Lx0.083W 2.60mmx2.10mm 270nH
PDF
/
Buying Options
Total Price: USD $0.37
Unit Price: USD $0.368794
≥1 USD $0.368794
≥10 USD $0.347915
≥100 USD $0.328224
≥500 USD $0.309649
≥1000 USD $0.29212
Inventory: 1163
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 1008 (2520 Metric)
Supplier Device Package 1008 (2520 Metric)
Material - Core Ceramic
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-KI
Size / Dimension 0.102Lx0.083W 2.60mmx2.10mm
Tolerance ±5%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Ceramic, Wirewound
Current Rating (Amps) 600mA
Shielding Unshielded
Current Rating 600mA
Case Code (Metric) 2520
Case Code (Imperial) 1008
Inductance 270nH
Test Frequency 100MHz
DC Resistance (DCR) 750mOhm Max
Max DC Current 600mA
Frequency - Self Resonant 650MHz
Q @ Freq 45 @ 100MHz
Inductance Frequency - Test 25MHz
Q Factor 45
Inductance Tolerance 5%
Dimensions
Height 990.6μm
Height Seated (Max) 0.075 1.90mm
Length 2.4892mm
Width 2.0066mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
