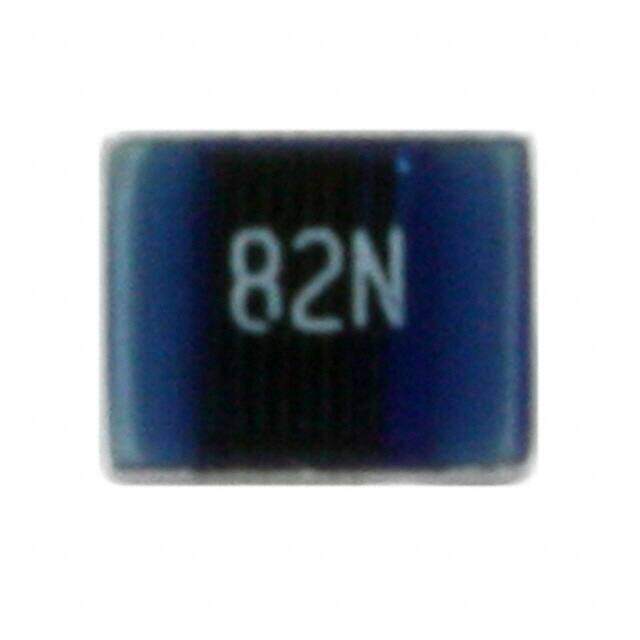

744762182A
RoHS
RoHS compliant
RoHS compliantPackage 1008 (2520 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-KI 1008 (2520Metric) 0.102Lx0.083W 2.60mmx2.10mm 82nH
PDF
/
Buying Options
Total Price: USD $0.37
Unit Price: USD $0.370636
≥1 USD $0.370636
≥10 USD $0.349658
≥100 USD $0.329865
≥500 USD $0.311198
≥1000 USD $0.293577
Inventory: 1156
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 1008 (2520 Metric)
Supplier Device Package 1008 (2520 Metric)
Material Ceramic
Weight 20mg
Material - Core Ceramic
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-KI
Size / Dimension 0.102Lx0.083W 2.60mmx2.10mm
Tolerance ±5%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Resistance 150mOhm
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Ceramic, Wirewound
Current Rating (Amps) 1A
Shielding Unshielded
Current Rating 1A
Frequency 350MHz
Case Code (Metric) 2520
Case Code (Imperial) 1008
Inductance 82nH
Test Frequency 350MHz
DC Resistance (DCR) 180mOhm Max
Max DC Current 1A
Frequency - Self Resonant 1.1GHz
Q @ Freq 60 @ 350MHz
Inductance Frequency - Test 100MHz
Q Factor 60
Inductance Tolerance 5%
Series Resistance 180mOhm
Dimensions
Height 1.6mm
Height Seated (Max) 0.075 1.90mm
Length 2.5mm
Width 2mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
