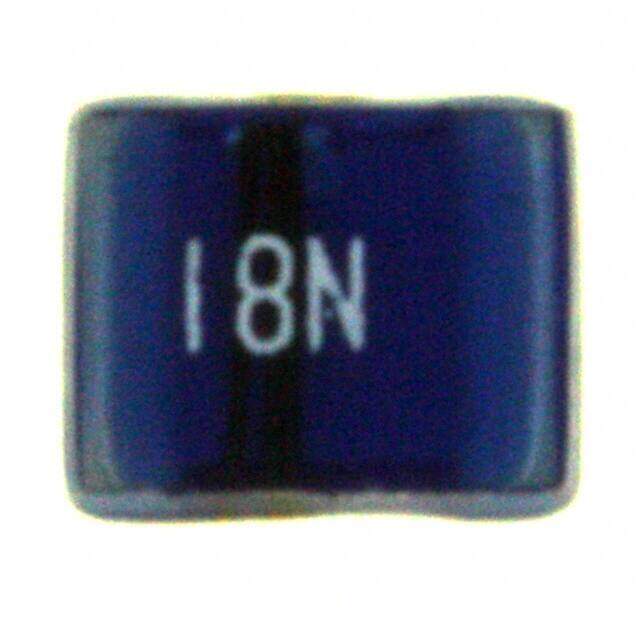

744762118A image
Favorite
744762118A image
Favorite

744762118A

Würth Elektronik
RoHS
RoHS RoHS compliant
Package 1008 (2520 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-KI 1008 (2520Metric) 0.102Lx0.083W 2.60mmx2.10mm 18nH
PDF
/
Buying Options
Total Price: USD $3.7
Unit Price: USD $3.7031
≥1 USD $3.7031
≥10 USD $3.0381
≥100 USD $2.9431
≥500 USD $2.8481
≥1000 USD $2.7531
Inventory: 1144
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 10 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case 1008 (2520 Metric)
Supplier Device Package 1008 (2520 Metric)
Material Ceramic
Weight 20mg
Material - Core Ceramic

Technical

Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-KI
Size / Dimension 0.102Lx0.083W 2.60mmx2.10mm
Tolerance ±5%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Resistance 80mOhm
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Ceramic, Wirewound
Current Rating (Amps) 1A
Shielding Unshielded
Current Rating 1A
Frequency 350MHz
Case Code (Metric) 2520
Case Code (Imperial) 1008
Inductance 18nH
Test Frequency 350MHz
DC Resistance (DCR) 100mOhm Max
Max DC Current 1A
Frequency - Self Resonant 2.7GHz
Q @ Freq 60 @ 350MHz
Inductance Frequency - Test 100MHz
Q Factor 60
Inductance Tolerance 5%
Series Resistance 100mOhm

Dimensions

Height 1.6mm
Height Seated (Max) 0.075 1.90mm
Length 2.5mm
Width 2mm

Compliance

REACH SVHC Unknown
RoHS Status ROHS3 Compliant
