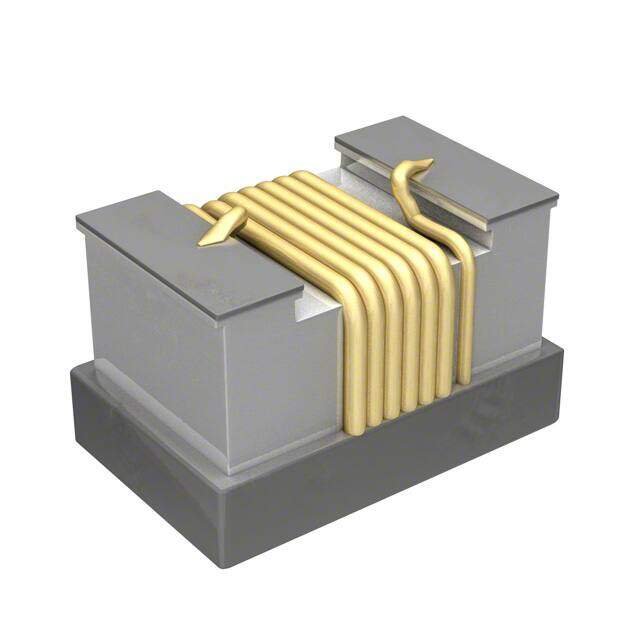

744762068A
RoHS
RoHS compliant
RoHS compliantPackage 1008 (2520 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-KI 1008 (2520Metric) 0.102Lx0.083W 2.60mmx2.10mm 6.8nH
PDF
/
Buying Options
Total Price: USD $0.41
Unit Price: USD $0.4136
≥1 USD $0.4136
≥10 USD $0.396
≥100 USD $0.36872
≥500 USD $0.34144
≥1000 USD $0.31416
≥3000 USD $0.28776
Inventory: 1079
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 2mm
Length 2.5mm
Height Seated (Max) 0.075 1.90mm
Height 1.6mm
Technical
Series Resistance 60mOhm
Inductance Tolerance 5%
Q Factor 50
Inductance Frequency - Test 100MHz
Q @ Freq 50 @ 1GHz
Frequency - Self Resonant 5.5GHz
Max DC Current 1A
DC Resistance (DCR) 60mOhm Max
Test Frequency 1GHz
Inductance 6.8nH
Case Code (Imperial) 1008
Case Code (Metric) 2520
Frequency 1GHz
Current Rating 1A
Shielding Unshielded
Current Rating (Amps) 1A
Composition Ceramic, Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 5.28Ohm
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±5%
Size / Dimension 0.102Lx0.083W 2.60mmx2.10mm
Series WE-KI
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Ceramic
Weight 20mg
Material Ceramic
Supplier Device Package 1008 (2520 Metric)
Package / Case 1008 (2520 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
