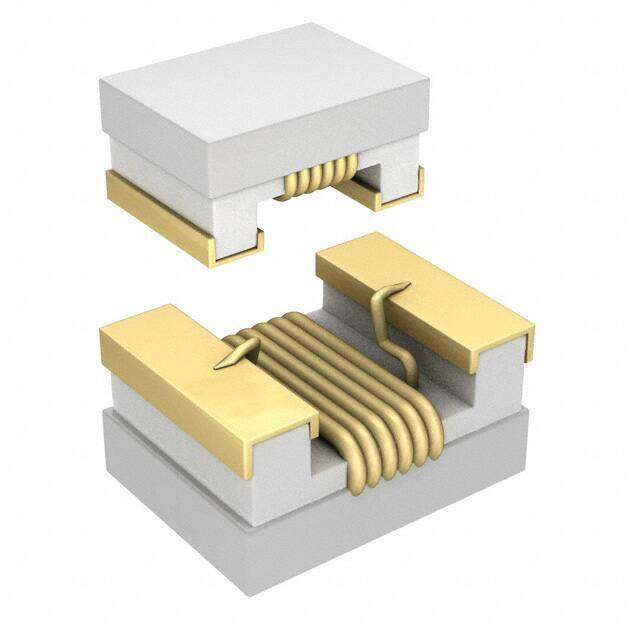

744761172A image
Favorite
744761172A image
Favorite

744761172A

Würth Elektronik
RoHS
RoHS RoHS compliant
Package 0603 (1608 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description ROHS3Compliant Ceramic Wirewound Active Fixed Inductor -40C~125C 1.7GHz 490mOhm Max 72nH
PDF
/
Buying Options
Total Price: USD $0.48
Unit Price: USD $0.4752
≥1 USD $0.4752
≥10 USD $0.38544
≥100 USD $0.35024
≥500 USD $0.27544
≥1000 USD $0.2332
Inventory: 6065
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Width 1.05mm
Length 1.6mm
Height Seated (Max) 0.049 1.25mm
Height 1.05mm

Technical

Series Resistance 490mOhm
Inductance Tolerance 5%
Q Factor 35
Inductance Frequency - Test 150MHz
Q @ Freq 35 @ 150MHz
Frequency - Self Resonant 1.7GHz
Max DC Current 400mA
DC Resistance (DCR) 490mOhm Max
Inductance 72nH
Case Code (Imperial) 0603
Case Code (Metric) 1608
Frequency 150MHz
Current Rating 400mA
Depth 1.05mm
Shielding Unshielded
Current Rating (Amps) 400mA
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 490mOhm
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±5%
Size / Dimension 0.063Lx0.041W 1.60mmx1.05mm
Series WE-KI
Packaging Cut Tape
Operating Temperature -40°C~125°C

Physical

Material - Core Ceramic
Weight 30mg
Material Ceramic
Supplier Device Package 0603
Number of Pins 2
Package / Case 0603 (1608 Metric)
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 9 Weeks
