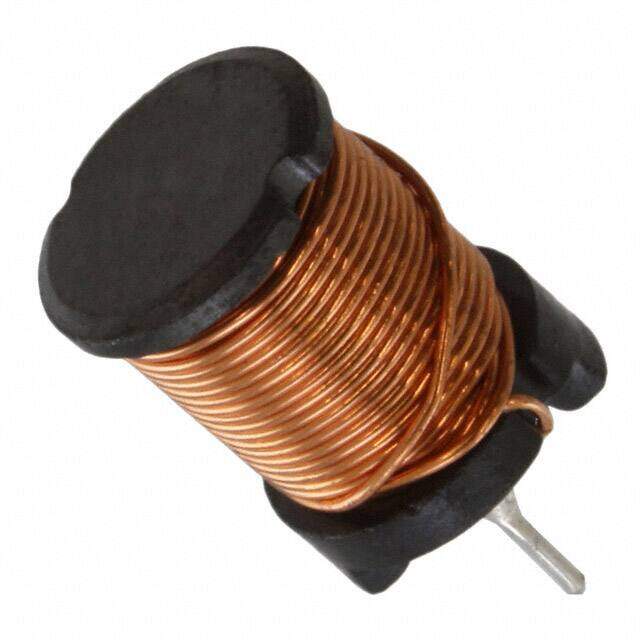

7447480331
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-TI Radial Vertical Cylinder (Open) 0.413Dia 10.50mm 330muH
PDF
/
Buying Options
Total Price: USD $2.42
Unit Price: USD $2.41965
≥1 USD $2.41965
≥10 USD $1.9855
≥100 USD $1.92375
≥500 USD $1.86105
≥1000 USD $1.7993
Inventory: 1161
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder (Open)
Number of Pins 2
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tray
Series WE-TI
Size / Dimension 0.413Dia 10.50mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Radial
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 1.4A
Shielding Unshielded
Current Rating 1.4A
Lead Pitch 5mm
Inductance 330μH
Test Frequency 1kHz
DC Resistance (DCR) 330mOhm Max
Max DC Current 1.4A
Frequency - Self Resonant 2.2MHz
Inductance Frequency - Test 1kHz
Current - Saturation 1.6A
Inductance Tolerance 10%
RMS Current (Irms) 1.4A
Dimensions
Height 14.5mm
Height Seated (Max) 0.571 14.50mm
Length 14.5mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Lead Free Lead Free
