7447480152
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description

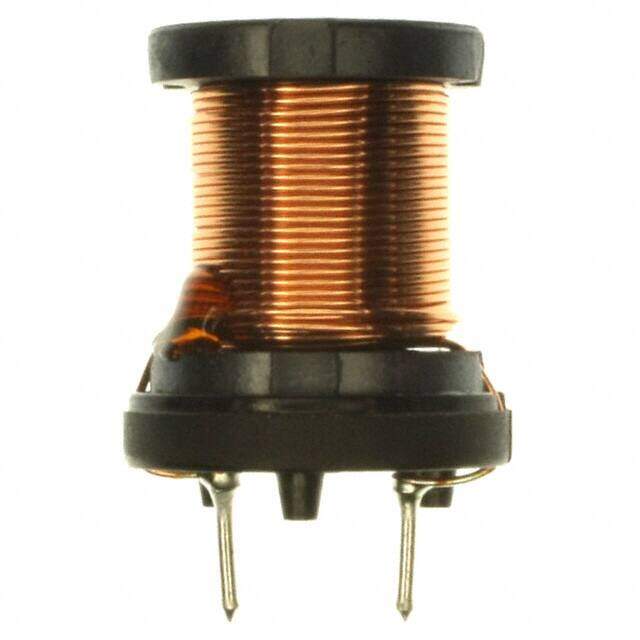

WE-TI Radial Vertical Cylinder (Open) 0.413Dia 10.50mm 1.5mH
PDF
/
Buying Options
Total Price: USD $1.56
Unit Price: USD $1.558215
≥1 USD $1.558215
≥10 USD $1.470018
≥100 USD $1.386807
≥500 USD $1.308313
≥1000 USD $1.234252
Inventory: 7945
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Length 14.5mm
Height Seated (Max) 0.571 14.50mm
Height 14.5034mm
Technical
RMS Current (Irms) 680mA
Inductance Tolerance 5%
Current - Saturation 600mA
Inductance Frequency - Test 1kHz
Frequency - Self Resonant 950kHz
Max DC Current 680mA
DC Resistance (DCR) 1.8Ohm Max
Test Frequency 1kHz
Inductance 1.5mH
Lead Pitch 5mm
Current Rating 680mA
Shielding Unshielded
Current Rating (Amps) 680mA
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Wirewound
Termination Radial
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±5%
Size / Dimension 0.413Dia 10.50mm
Series WE-TI
Packaging Tray
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Number of Pins 2
Package / Case Radial, Vertical Cylinder (Open)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 18 Weeks
