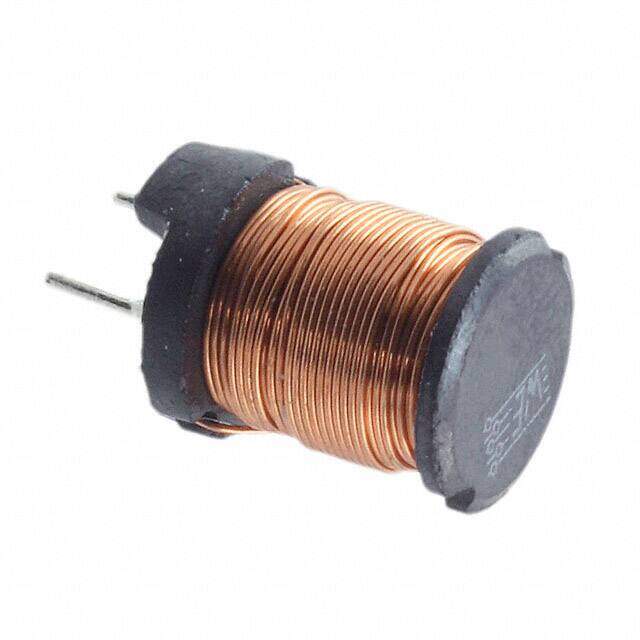

7447480102 image
Favorite
7447480102 image
Favorite

7447480102

Würth Elektronik
RoHS
RoHS RoHS compliant
Package Radial, Vertical Cylinder (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-TI Radial Vertical Cylinder (Open) 0.413Dia 10.50mm 1mH
PDF
/
Buying Options
Total Price: USD $1.53
Unit Price: USD $1.527652
≥1 USD $1.527652
≥10 USD $1.441183
≥100 USD $1.359605
≥500 USD $1.282649
≥1000 USD $1.210044
Inventory: 1149
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 18 Weeks

Physical

Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder (Open)
Number of Pins 2
Material - Core Ferrite

Technical

Operating Temperature -40°C~125°C
Packaging Tray
Series WE-TI
Size / Dimension 0.413Dia 10.50mm
Tolerance ±5%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Radial
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 800mA
Shielding Unshielded
Current Rating 800mA
Lead Pitch 5mm
Inductance 1mH
Test Frequency 1kHz
DC Resistance (DCR) 1.15Ohm Max
Max DC Current 800mA
Frequency - Self Resonant 1.1MHz
Inductance Frequency - Test 1kHz
Current - Saturation 800mA
Inductance Tolerance 5%
RMS Current (Irms) 800mA

Dimensions

Diameter 10.5mm
Height Seated (Max) 0.571 14.50mm
Length 14.5mm

Compliance

REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Lead Free Lead Free
