RoHS
RoHS RoHS compliant
Package Radial, Vertical Cylinder (Open)
Category Inductors, Coils, Chokes / Fixed Inductors

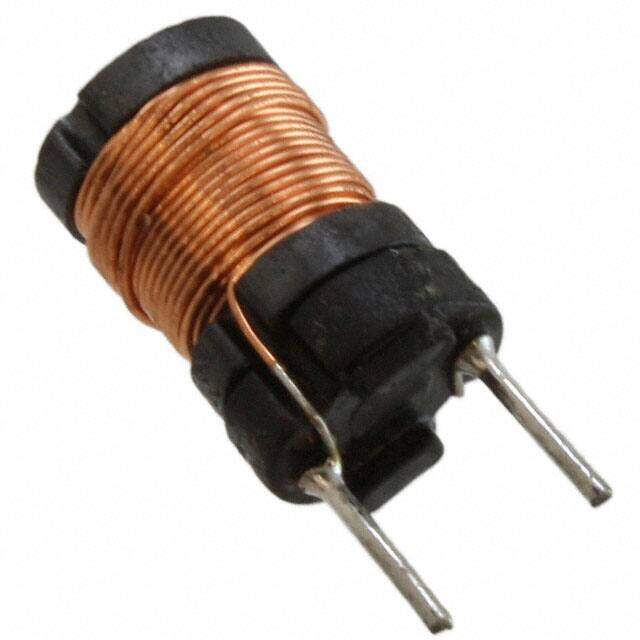

Description WE-TI Radial Vertical Cylinder (Open) 0.335Dia 8.50mm 220muH
PDF
/
Buying Options
Total Price: USD $1.13
Unit Price: USD $1.127946
≥1 USD $1.127946
≥10 USD $1.064101
≥100 USD $1.00386
≥500 USD $0.947046
≥1000 USD $0.89344
Inventory: 1195
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 12 Weeks

Physical

Mount Radial, Through Hole
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder (Open)
Number of Pins 2
Material - Core Ferrite

Technical

Operating Temperature -40°C~125°C
Packaging Tray
Series WE-TI
Size / Dimension 0.335Dia 8.50mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Radial
Type Wirewound
Max Operating Temperature 85°C
Min Operating Temperature -25°C
Composition Wirewound
Current Rating (Amps) 960mA
Shielding Unshielded
Current Rating 960mA
Lead Pitch 5mm
Inductance 220μH
Test Frequency 1kHz
DC Resistance (DCR) 550mOhm Max
Max DC Current 930mA
Frequency - Self Resonant 3.9MHz
Inductance Frequency - Test 1kHz
Current - Saturation 1.2A
Inductance Tolerance 10%
RMS Current (Irms) 960mA
Series Resistance 550mOhm

Dimensions

Diameter 8mm
Height 5.5118mm
Height Seated (Max) 0.236 6.00mm
Length 12.5mm

Compliance

REACH SVHC Unknown
RoHS Status ROHS3 Compliant
