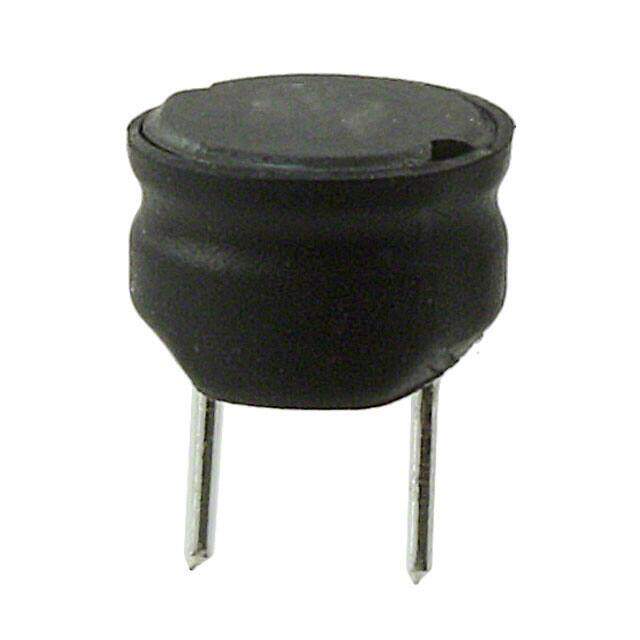

744741471
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 470UH 440MA 3 OHM TH
PDF
/
Inventory: 9643
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.236 6.00mm
Technical
Inductance Tolerance 10%
Current - Saturation 400mA
Inductance Frequency - Test 1kHz
Frequency - Self Resonant 3.4MHz
DC Resistance (DCR) 3Ohm Max
Inductance 470μH
Shielding Unshielded
Current Rating (Amps) 440mA
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±10%
Size / Dimension 0.335Dia 8.50mm
Series WE-TI
Packaging Tray
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Number of Pins 2
Package / Case Radial, Vertical Cylinder
Mounting Type Through Hole
Supply Chain
Factory Lead Time 12 Weeks
