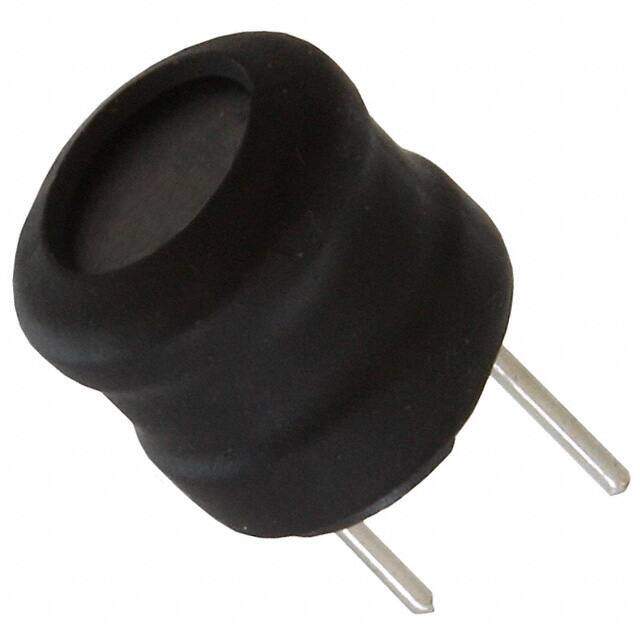

744732152 image
Favorite
744732152 image
Favorite
RoHS
RoHS RoHS compliant
Package Radial, Vertical Cylinder
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-TI Radial Vertical Cylinder 0.307Dia 7.80mm 1.5mH
PDF
/
Inventory: 5219
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 12 Weeks

Physical

Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder
Number of Pins 2
Material - Core Ferrite

Technical

Operating Temperature -40°C~125°C
Packaging Tray
Series WE-TI
Size / Dimension 0.307Dia 7.80mm
Tolerance ±5%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Radial
Type Wirewound
Resistance 4.7Ohm
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 290mA
Shielding Unshielded
Current Rating 290mA
Lead Pitch 5mm
Inductance 1.5mH
Test Frequency 1kHz
DC Resistance (DCR) 4.7Ohm Max
Max DC Current 290mA
Frequency - Self Resonant 1.75MHz
Inductance Frequency - Test 1kHz
Current - Saturation 500mA
Inductance Tolerance 5%
RMS Current (Irms) 290mA

Dimensions

Height 8mm
Height Seated (Max) 0.295 7.50mm
Length 3mm

Compliance

REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Lead Free Lead Free
