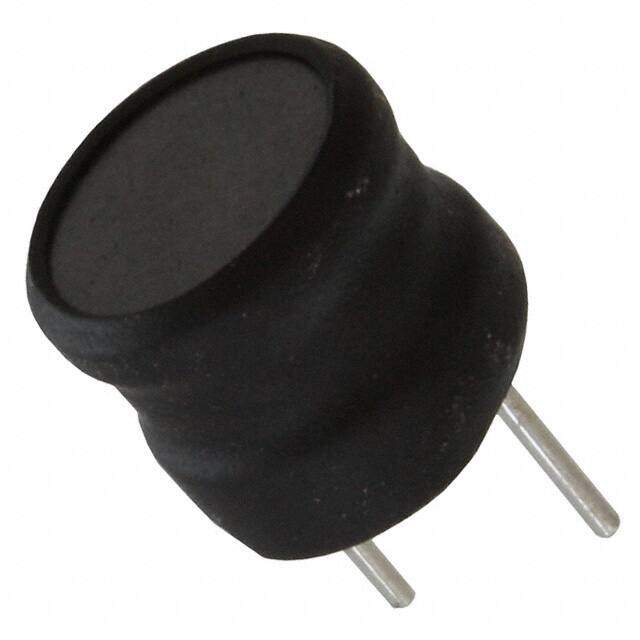

744732102
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-TI Radial Vertical Cylinder 0.307Dia 7.80mm 1mH
PDF
/
Buying Options
Total Price: USD $1.09
Unit Price: USD $1.087039
≥1 USD $1.087039
≥10 USD $1.025509
≥100 USD $0.967466
≥500 USD $0.912698
≥1000 USD $0.86104
Inventory: 1089
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder
Number of Pins 2
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tray
Series WE-TI
Size / Dimension 0.307Dia 7.80mm
Tolerance ±5%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Radial
Type Wirewound
Resistance 3.4Ohm
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 330mA
Shielding Unshielded
Current Rating 330mA
Lead Pitch 5mm
Inductance 1mH
Test Frequency 1kHz
DC Resistance (DCR) 3.4Ohm Max
Max DC Current 330mA
Frequency - Self Resonant 1.8MHz
Inductance Frequency - Test 1kHz
Current - Saturation 600mA
Inductance Tolerance 5%
RMS Current (Irms) 330mA
Dimensions
Height 7.493mm
Height Seated (Max) 0.295 7.50mm
Length 3mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Lead Free Lead Free
