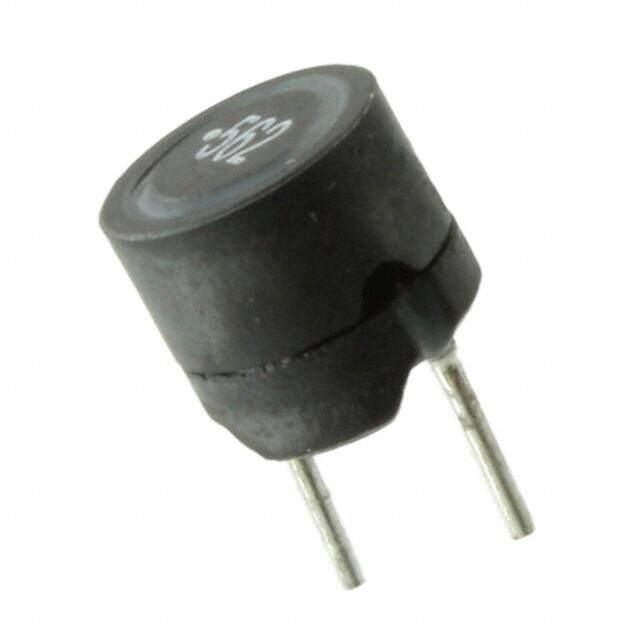

744731562
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 5.6MH 130MA 15.7 OHM
PDF
/
Buying Options
Total Price: USD $1.73
Unit Price: USD $1.733003
≥1 USD $1.733003
≥10 USD $1.634906
≥100 USD $1.542364
≥500 USD $1.45506
≥1000 USD $1.372701
Inventory: 1146
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder
Number of Pins 2
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tray
Series WE-TIS
Size / Dimension 0.307Dia 7.80mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 130mA
Shielding Shielded
Inductance 5.6mH
DC Resistance (DCR) 15.7Ohm Max
Frequency - Self Resonant 700kHz
Inductance Frequency - Test 1kHz
Current - Saturation 70mA
Inductance Tolerance 10%
Dimensions
Height Seated (Max) 0.295 7.50mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Alternative Model
