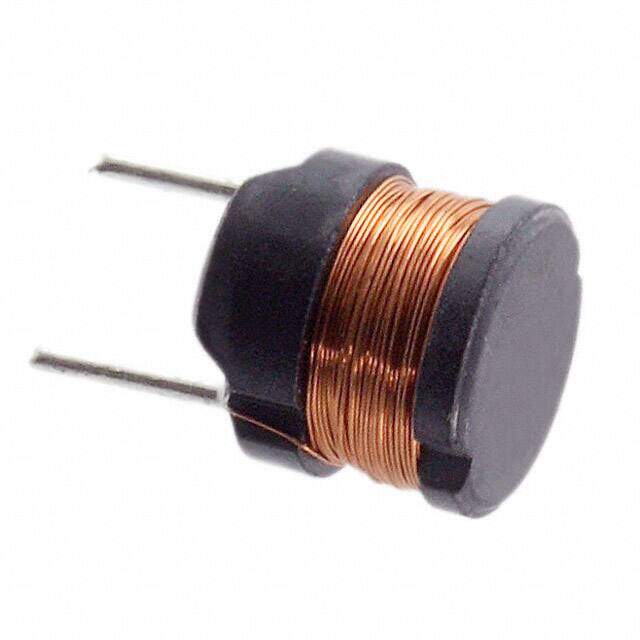

744730392 image
Favorite
744730392 image
Favorite
RoHS
RoHS RoHS compliant
Package Radial, Vertical Cylinder (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-TI Radial Vertical Cylinder (Open) 0.307Dia 7.80mm 3.9mH
PDF
/
Buying Options
Total Price: USD $1.21
Unit Price: USD $1.2144
≥1 USD $1.2144
≥10 USD $1.1572
≥100 USD $1.078
≥500 USD $0.95832
≥1000 USD $0.87824
Inventory: 97
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 12 Weeks

Physical

Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder (Open)
Material - Core Ferrite

Technical

Operating Temperature -40°C~125°C
Packaging Tray
Series WE-TI
Size / Dimension 0.307Dia 7.80mm
Tolerance ±5%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Radial
Type Wirewound
Resistance 9.5Ohm
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 180mA
Shielding Unshielded
Current Rating 180mA
Lead Pitch 5mm
Inductance 3.9mH
Test Frequency 1kHz
DC Resistance (DCR) 12Ohm Max
Max DC Current 180mA
Frequency - Self Resonant 1.04MHz
Inductance Frequency - Test 1kHz
Current - Saturation 200mA
Inductance Tolerance 5%
RMS Current (Irms) 180mA

Dimensions

Height 7.3mm
Height Seated (Max) 0.295 7.50mm
Length 7.5mm

Compliance

REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Lead Free Lead Free
