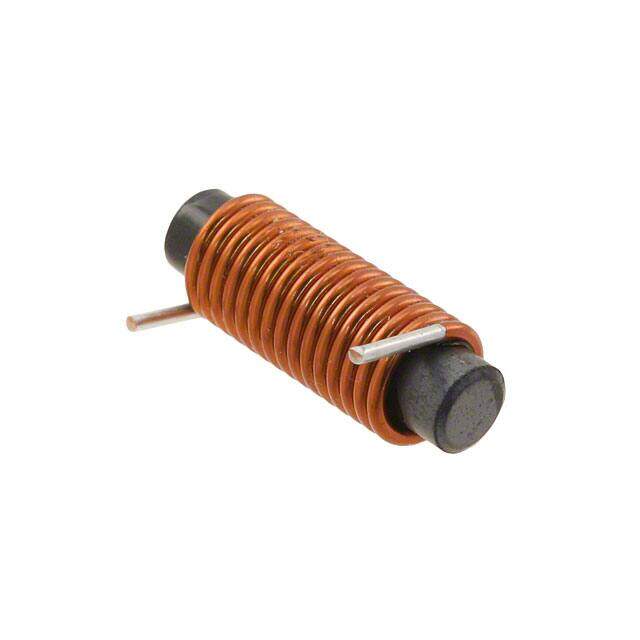

744710610 image
Favorite
744710610 image
Favorite
RoHS
RoHS RoHS compliant
Package Radial, Horizontal Cylinder (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-SD Radial Horizontal Cylinder (Open) 0.339Diax1.012L 8.60mmx25.70mm 6muH
PDF
/
Buying Options
Total Price: USD $1.59
Unit Price: USD $1.585061
≥1 USD $1.585061
≥10 USD $1.49534
≥100 USD $1.4107
≥500 USD $1.330852
≥1000 USD $1.255517
Inventory: 1191
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Width 18mm
Length 25.7mm

Technical

Inductance Tolerance 25%
Inductance Frequency - Test 10kHz
Frequency - Self Resonant 55MHz
Max DC Current 10A
DC Resistance (DCR) 6.5mOhm
Test Frequency 10kHz
Inductance 6μH
Lead Length 18mm
Lead Pitch 18mm
Frequency 55MHz
Current Rating 10A
Shielding Unshielded
Current Rating (Amps) 10A
Min Operating Temperature -40°C
Max Operating Temperature 150°C
Resistance 6.5MOhm
Type Wirewound
Termination Radial
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±25%
Size / Dimension 0.339Diax1.012L 8.60mmx25.70mm
Series WE-SD
Packaging Tray
Operating Temperature -40°C~150°C

Physical

Material - Core Ferrite
Number of Pins 2
Package / Case Radial, Horizontal Cylinder (Open)
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 21 Weeks
