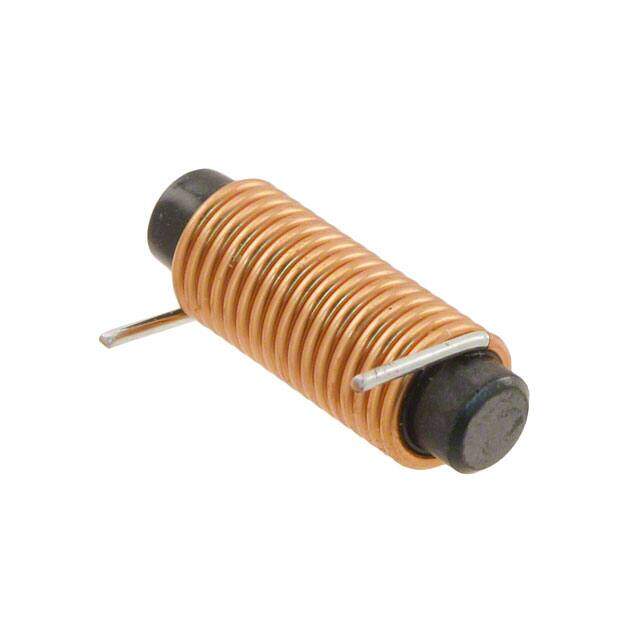

744710605
RoHS
RoHS compliant
RoHS compliantPackage Radial, Horizontal Cylinder (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-SD Radial Horizontal Cylinder (Open) 0.272Diax0.807L 6.90mmx20.50mm 6muH
PDF
/
Buying Options
Total Price: USD $1.79
Unit Price: USD $1.7864
≥1 USD $1.7864
≥10 USD $1.75912
≥100 USD $1.5884
≥500 USD $1.53208
≥1000 USD $1.41856
≥3000 USD $1.30504
Inventory: 374
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 14.7mm
Length 20.5mm
Height 20.5mm
Diameter 5.9mm
Technical
Inductance Tolerance 25%
Inductance Frequency - Test 10kHz
Frequency - Self Resonant 60MHz
Max DC Current 5A
DC Resistance (DCR) 11.7mOhm
Test Frequency 10kHz
Inductance 6μH
Lead Length 14.8mm
Lead Pitch 14.7mm
Frequency 60MHz
Current Rating 5A
Shielding Unshielded
Current Rating (Amps) 5A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 150°C
Resistance 11.7MOhm
Type Wirewound
Termination Radial
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±25%
Size / Dimension 0.272Diax0.807L 6.90mmx20.50mm
Series WE-SD
Packaging Tray
Operating Temperature -40°C~150°C
Physical
Material - Core Ferrite
Number of Pins 2
Package / Case Radial, Horizontal Cylinder (Open)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 21 Weeks
