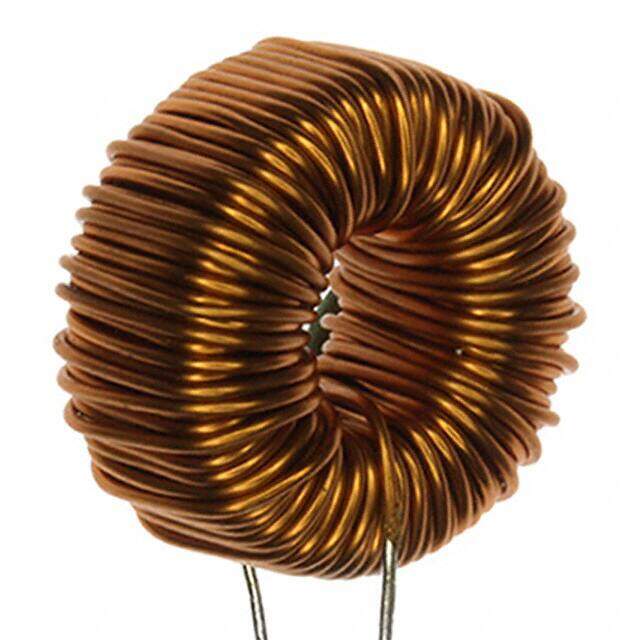

7447075 image
Favorite
7447075 image
Favorite
RoHS
RoHS RoHS compliant
Package Radial, Vertical (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-FI Radial Vertical (Open) 1.122Diax0.591W 28.50mmx15.00mm 860muH
PDF
/
Buying Options
Total Price: USD $3.91
Unit Price: USD $3.908413
≥1 USD $3.908413
≥10 USD $3.687182
≥100 USD $3.478476
≥500 USD $3.281576
≥1000 USD $3.095825
Inventory: 1281
Minimum: 1
-
+

Technical Details

Technical

Series Resistance 150mOhm
RMS Current (Irms) 3A
Inductance Tolerance 20%
Inductance Frequency - Test 10kHz
Max DC Current 3A
DC Resistance (DCR) 150mOhm Max
Test Frequency 10kHz
Inductance 860μH
Lead Pitch 14mm
Current Rating 3A
Depth 16mm
Shielding Unshielded
Current Rating (Amps) 3A
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Type Toroidal
Termination Through Hole
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 1.122Diax0.591W 28.50mmx15.00mm
Series WE-FI
Packaging Bulk
Operating Temperature -40°C~105°C

Dimensions

Diameter 28.5mm
Length 28.5mm
Width 15.0114mm

Compliance

REACH SVHC Unknown
RoHS Status ROHS3 Compliant

Physical

Material - Core Ferrite
Number of Pins 2
Package / Case Radial, Vertical (Open)
Mounting Type Through Hole
Mount Through Hole, Wire

Supply Chain

Factory Lead Time 20 Weeks
