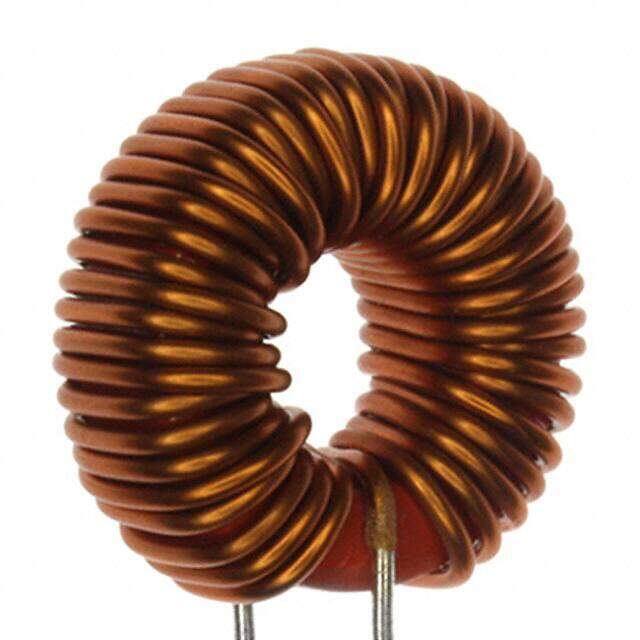

7447070
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-FI Radial Vertical (Open) 0.984Diax0.433W 25.00mmx11.00mm 100muH
PDF
/
Buying Options
Total Price: USD $3.07
Unit Price: USD $3.065969
≥1 USD $3.065969
≥10 USD $2.892426
≥100 USD $2.728707
≥500 USD $2.574254
≥1000 USD $2.428532
Inventory: 1077
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Physical
Mount Through Hole, Wire
Mounting Type Through Hole
Package / Case Radial, Vertical (Open)
Number of Pins 2
Material - Core Ferrite
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Series WE-FI
Size / Dimension 0.984Diax0.433W 25.00mmx11.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Through Hole
Type Toroidal
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 5A
Shielding Unshielded
Depth 11.5mm
Current Rating 5A
Lead Pitch 8mm
Inductance 100μH
Test Frequency 10kHz
DC Resistance (DCR) 35mOhm Max
Max DC Current 5A
Inductance Frequency - Test 10kHz
Inductance Tolerance 20%
RMS Current (Irms) 6A
Series Resistance 35mOhm
Ambient Temperature Range High 65°C
Dimensions
Diameter 25.2mm
Height 27mm
Length 25mm
Width 10.9982mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
