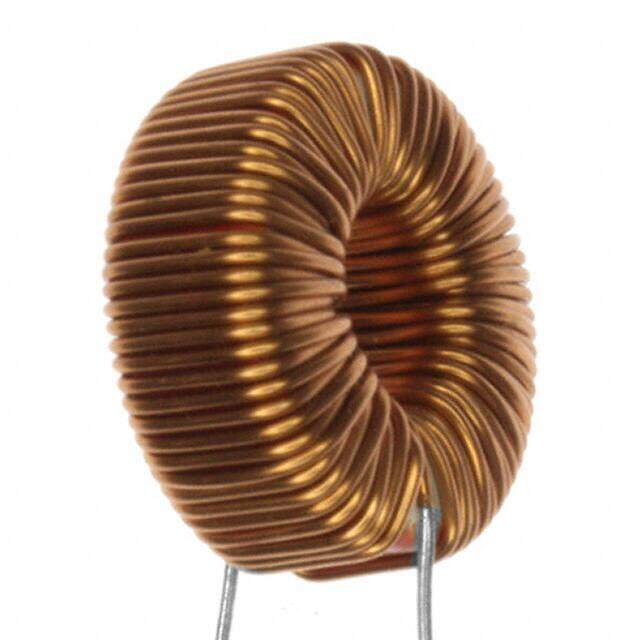

7447060
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-FI Radial Vertical (Open) 0.827Diax0.433L 21.00mmx11.00mm 300muH
PDF
/
Buying Options
Total Price: USD $1.92
Unit Price: USD $1.919686
≥1 USD $1.919686
≥10 USD $1.811021
≥100 USD $1.708514
≥500 USD $1.611807
≥1000 USD $1.520568
Inventory: 3596
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 7.493mm
Length 21mm
Diameter 21mm
Technical
Series Resistance 150mOhm
RMS Current (Irms) 2A
Inductance Tolerance 20%
Inductance Frequency - Test 10kHz
Max DC Current 2A
DC Resistance (DCR) 150mOhm Max
Test Frequency 10kHz
Inductance 300μH
Lead Pitch 9mm
Current Rating 2A
Depth 11mm
Shielding Unshielded
Current Rating (Amps) 2A
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Type Toroidal
Termination Through Hole
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.827Diax0.433L 21.00mmx11.00mm
Series WE-FI
Packaging Bulk
Operating Temperature -40°C~105°C
Physical
Material - Core Ferrite
Number of Pins 2
Package / Case Radial, Vertical (Open)
Mounting Type Through Hole
Mount Through Hole, Wire
Supply Chain
Factory Lead Time 20 Weeks

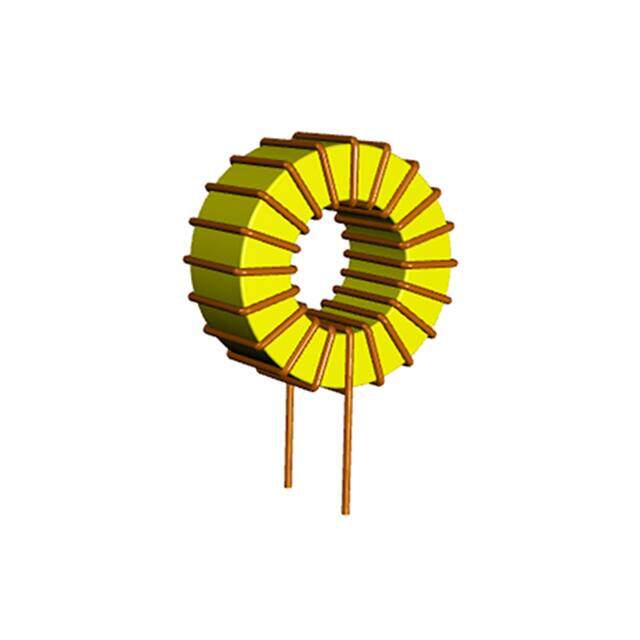

Alternative Model
