RoHS
RoHS RoHS compliant
Package Radial, Vertical (Open)
Category Inductors, Coils, Chokes / Fixed Inductors

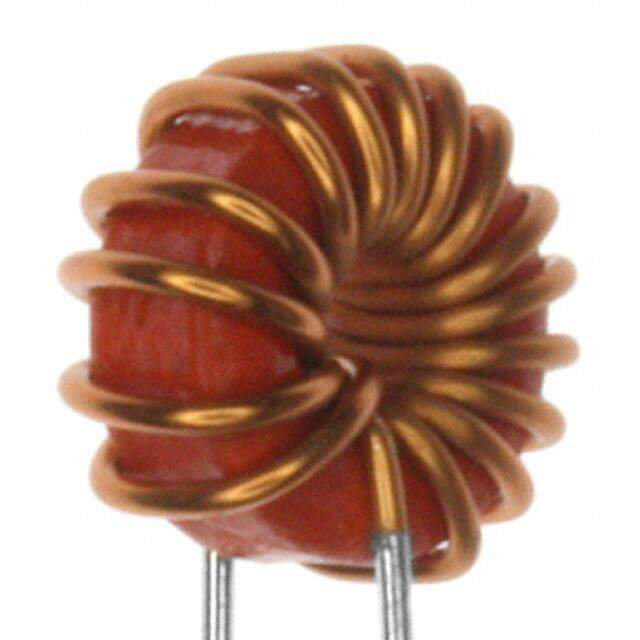

Description WE-FI Radial Vertical (Open) 0.413Diax0.217W 10.50mmx5.50mm 10muH
PDF
/
Buying Options
Total Price: USD $1.72
Unit Price: USD $1.720281
≥1 USD $1.720281
≥10 USD $1.622906
≥100 USD $1.531039
≥500 USD $1.444381
≥1000 USD $1.362625
Inventory: 1125
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 20 Weeks

Physical

Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Vertical (Open)
Number of Pins 2
Material - Core Ferrite

Technical

Operating Temperature -40°C~105°C
Packaging Bulk
Series WE-FI
Size / Dimension 0.413Diax0.217W 10.50mmx5.50mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Toroidal
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Current Rating (Amps) 2A
Shielding Unshielded
Current Rating 2A
Inductance 10μH
Test Frequency 10kHz
DC Resistance (DCR) 20mOhm Max
Inductance Frequency - Test 10kHz
Inductance Tolerance 20%
RMS Current (Irms) 2A

Dimensions

Length 10.5mm
Width 6.5024mm

Compliance

REACH SVHC Unknown
RoHS Status ROHS3 Compliant
