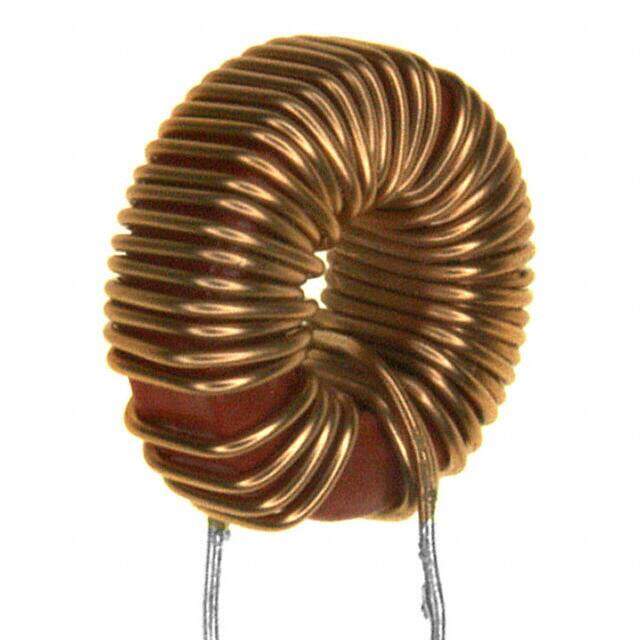

7447041 image
Favorite
7447041 image
Favorite
RoHS
RoHS RoHS compliant
Package Radial, Vertical (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description FIXED IND 68UH 800MA 100 MOHM TH
PDF
/
Inventory: 2740
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 20 Weeks

Physical

Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Vertical (Open)
Material - Core Ferrite

Technical

Operating Temperature -40°C~105°C
Packaging Bulk
Series WE-FI
Size / Dimension 0.472Diax0.217W 12.00mmx5.50mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Toroidal
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Current Rating (Amps) 800mA
Shielding Unshielded
Current Rating 800mA
Inductance 68μH
Test Frequency 1kHz
DC Resistance (DCR) 100mOhm Max
Inductance Frequency - Test 10kHz

Dimensions

Width 7.493mm

Compliance

RoHS Status ROHS3 Compliant
