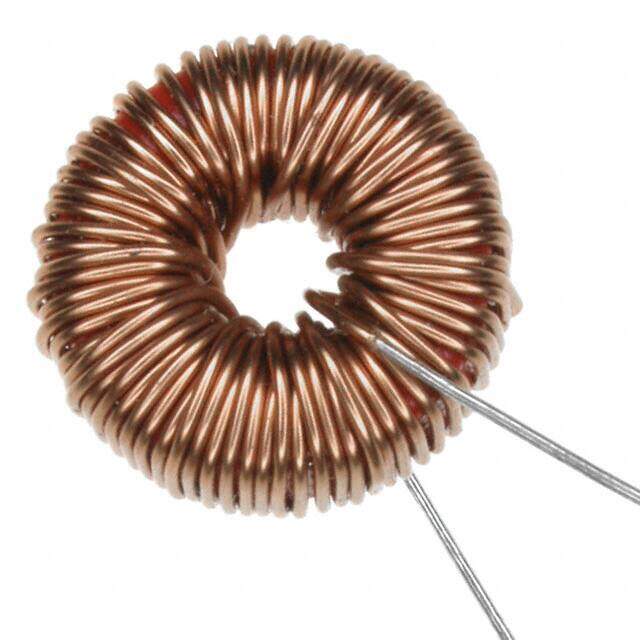

7447036
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-FI Radial Vertical (Open) 0.551Diax0.295W 14.00mmx7.50mm 220muH
PDF
/
Buying Options
Total Price: USD $2.11
Unit Price: USD $2.112
≥1 USD $2.112
≥10 USD $2.0152
≥100 USD $1.8744
≥500 USD $1.7688
≥1000 USD $1.5928
Inventory: 419
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 7.493mm
Length 14mm
Diameter 14mm
Technical
Series Resistance 220mOhm
RMS Current (Irms) 800mA
Inductance Tolerance 20%
Inductance Frequency - Test 10kHz
Max DC Current 800mA
DC Resistance (DCR) 220mOhm Max
Test Frequency 1kHz
Inductance 220μH
Lead Pitch 6mm
Current Rating 800mA
Depth 7.5mm
Shielding Unshielded
Current Rating (Amps) 800mA
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Resistance 220mOhm
Type Toroidal
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.551Diax0.295W 14.00mmx7.50mm
Series WE-FI
Packaging Bulk
Operating Temperature -40°C~105°C
Physical
Material - Core Ferrite
Number of Pins 2
Package / Case Radial, Vertical (Open)
Mounting Type Through Hole
Mount Through Hole, Wire
Supply Chain
Factory Lead Time 20 Weeks

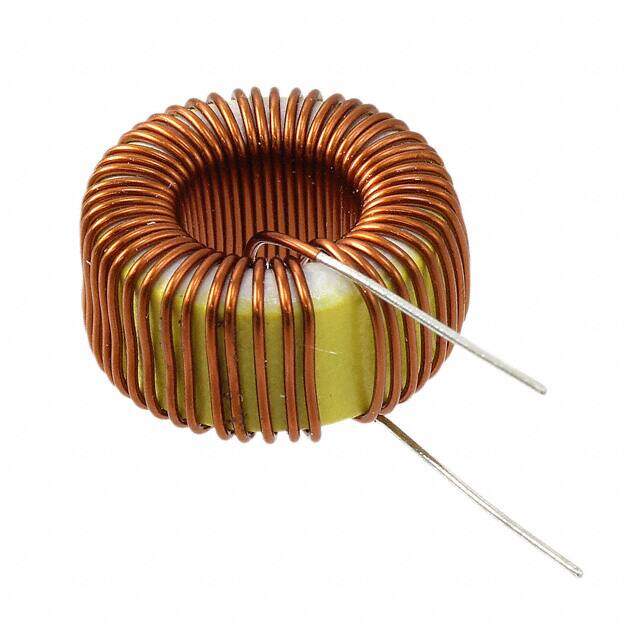

Alternative Model
