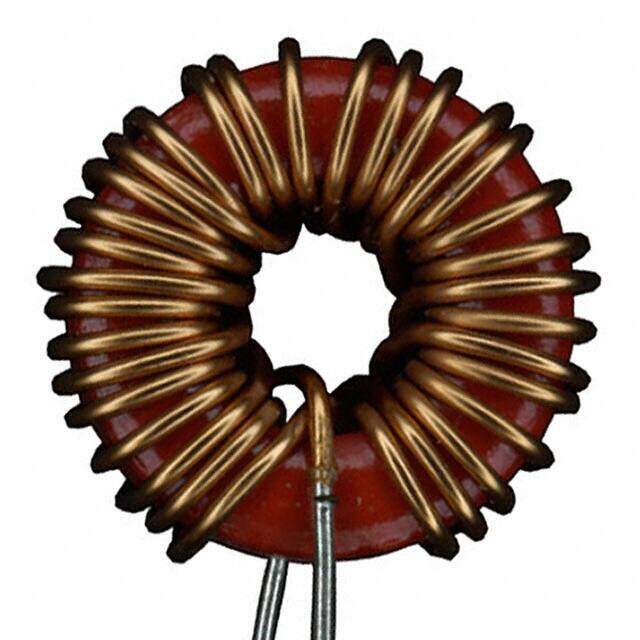

7447034 image
Favorite
7447034 image
Favorite
RoHS
RoHS RoHS compliant
Package Radial, Vertical (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-FI Radial Vertical (Open) 0.512Diax0.256W 13.00mmx6.50mm 43muH
PDF
/
Buying Options
Total Price: USD $1.92
Unit Price: USD $1.920137
≥1 USD $1.920137
≥10 USD $1.811442
≥100 USD $1.708915
≥500 USD $1.612186
≥1000 USD $1.520923
Inventory: 2248
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 20 Weeks

Physical

Mount Through Hole, Wire
Mounting Type Through Hole
Package / Case Radial, Vertical (Open)
Number of Pins 2
Material - Core Ferrite

Technical

Operating Temperature -40°C~105°C
Packaging Bulk
Series WE-FI
Size / Dimension 0.512Diax0.256W 13.00mmx6.50mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Through Hole
Type Toroidal
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Current Rating (Amps) 1A
Shielding Unshielded
Depth 6.5mm
Current Rating 1A
Lead Pitch 4.5mm
Inductance 43μH
Test Frequency 10kHz
DC Resistance (DCR) 60mOhm Max
Max DC Current 1A
Inductance Frequency - Test 10kHz
Inductance Tolerance 20%
RMS Current (Irms) 1A

Dimensions

Diameter 13mm
Length 13mm
Width 10.4902mm

Compliance

REACH SVHC Unknown
RoHS Status ROHS3 Compliant
