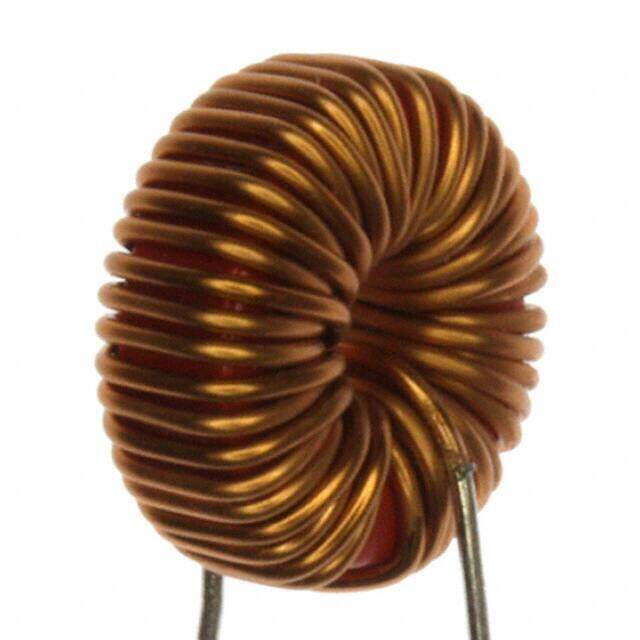

7447033
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-FI Radial Vertical (Open) 0.551Diax0.276W 14.00mmx7.00mm 68muH
PDF
/
Buying Options
Total Price: USD $1.7
Unit Price: USD $1.6984
≥1 USD $1.6984
≥10 USD $1.6104
≥100 USD $1.5048
≥500 USD $1.4168
≥1000 USD $1.2848
Inventory: 445
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Physical
Mount Through Hole, Wire
Mounting Type Through Hole
Package / Case Radial, Vertical (Open)
Number of Pins 2
Material - Core Ferrite
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Series WE-FI
Size / Dimension 0.551Diax0.276W 14.00mmx7.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Through Hole
Type Toroidal
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Current Rating (Amps) 2A
Shielding Unshielded
Depth 8mm
Current Rating 2A
Lead Pitch 6mm
Inductance 68μH
Test Frequency 10kHz
DC Resistance (DCR) 55mOhm Max
Max DC Current 2A
Inductance Frequency - Test 10kHz
Inductance Tolerance 20%
RMS Current (Irms) 2A
Series Resistance 55mOhm
Dimensions
Diameter 14mm
Length 14mm
Width 10.4902mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
