RoHS
RoHS RoHS compliant
Package Radial, Vertical (Open)
Category Inductors, Coils, Chokes / Fixed Inductors

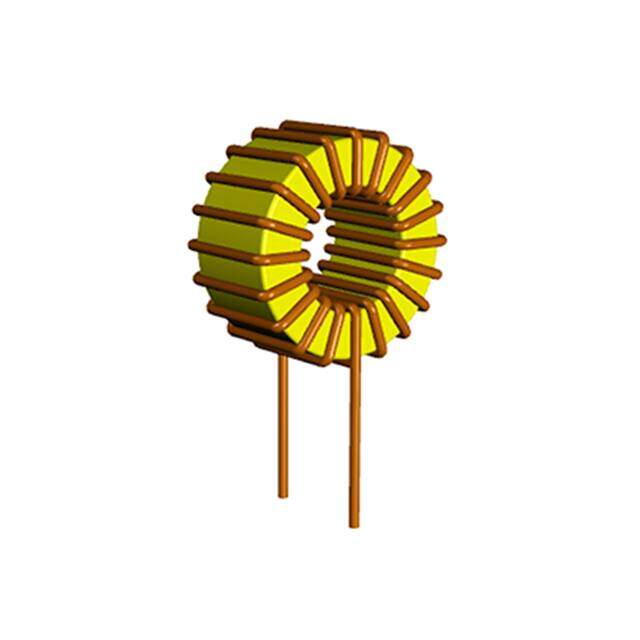

Description ROHS3Compliant Toroidal Active Bulk Fixed Inductor -40C~105C 10kHz 90mOhm Max 130muH
PDF
/
Buying Options
Total Price: USD $1.83
Unit Price: USD $1.827111
≥1 USD $1.827111
≥10 USD $1.723686
≥100 USD $1.626116
≥500 USD $1.534078
≥1000 USD $1.44724
Inventory: 2444
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Diameter 17.5mm

Technical

Inductance Frequency - Test 10kHz
Max DC Current 2A
DC Resistance (DCR) 90mOhm Max
Inductance 130μH
Lead Pitch 14mm
Depth 13mm
Shielding Unshielded
Current Rating (Amps) 3A
Min Operating Temperature -25°C
Max Operating Temperature 105°C
Type Toroidal
Termination Through Hole
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.689Diax0.512W 17.50mmx13.00mm
Series WE-FI
Packaging Bulk
Operating Temperature -40°C~105°C

Physical

Material - Core Iron Powder
Package / Case Radial, Vertical (Open)
Mounting Type Through Hole
Mount Wire

Supply Chain

Factory Lead Time 18 Weeks
