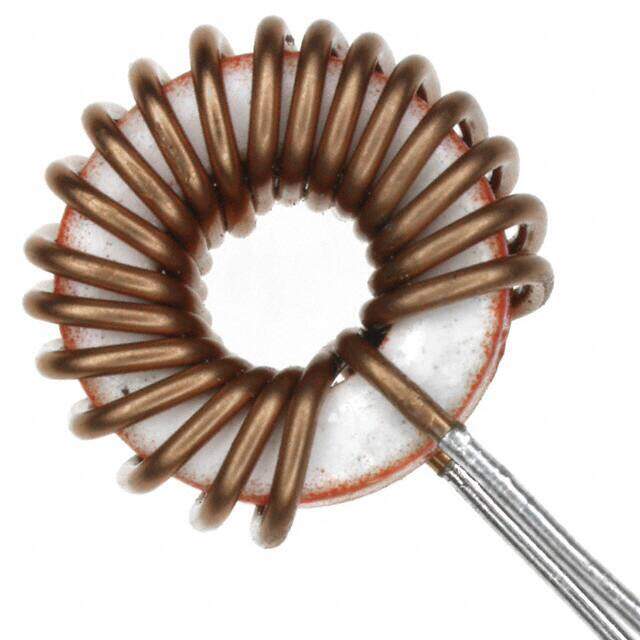

7447017
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-FI Radial Vertical (Open) 0.748Diax0.413W 19.00mmx10.50mm 22muH
PDF
/
Buying Options
Total Price: USD $2.29
Unit Price: USD $2.294016
≥1 USD $2.294016
≥10 USD $2.164168
≥100 USD $2.041669
≥500 USD $1.926098
≥1000 USD $1.81708
Inventory: 6199
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 15.0114mm
Length 19mm
Technical
RMS Current (Irms) 5A
Inductance Tolerance 20%
Inductance Frequency - Test 10kHz
DC Resistance (DCR) 15mOhm Max
Test Frequency 1kHz
Inductance 22μH
Current Rating 5A
Shielding Unshielded
Current Rating (Amps) 5A
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Type Toroidal
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.748Diax0.413W 19.00mmx10.50mm
Series WE-FI
Packaging Bulk
Operating Temperature -40°C~105°C
Physical
Material - Core Ferrite
Number of Pins 2
Package / Case Radial, Vertical (Open)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 20 Weeks

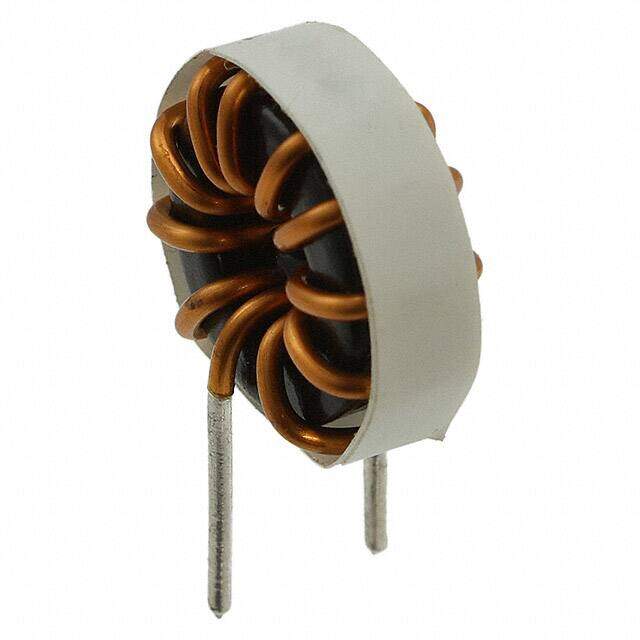

Alternative Model
