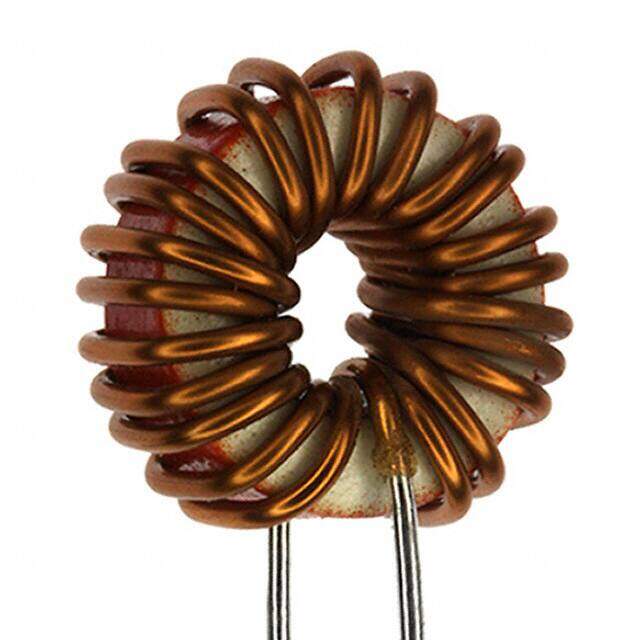

7447016
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-FI Radial Vertical (Open) 0.748Diax0.413W 19.00mmx10.50mm 29muH
PDF
/
Buying Options
Total Price: USD $1.93
Unit Price: USD $1.930635
≥1 USD $1.930635
≥10 USD $1.821353
≥100 USD $1.71826
≥500 USD $1.621001
≥1000 USD $1.529245
Inventory: 1085
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 15.494mm
Length 18.5mm
Diameter 18.5mm
Technical
Series Resistance 15mOhm
RMS Current (Irms) 5A
Inductance Tolerance 20%
Inductance Frequency - Test 10kHz
Max DC Current 5A
DC Resistance (DCR) 15mOhm Max
Test Frequency 10kHz
Inductance 29μH
Lead Pitch 8mm
Current Rating 5A
Depth 10.5mm
Shielding Unshielded
Current Rating (Amps) 5A
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Type Toroidal
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.748Diax0.413W 19.00mmx10.50mm
Series WE-FI
Packaging Tray
Operating Temperature -40°C~105°C
Physical
Material - Core Ferrite
Number of Pins 2
Package / Case Radial, Vertical (Open)
Mounting Type Through Hole
Mount Through Hole, Wire
Supply Chain
Factory Lead Time 20 Weeks
