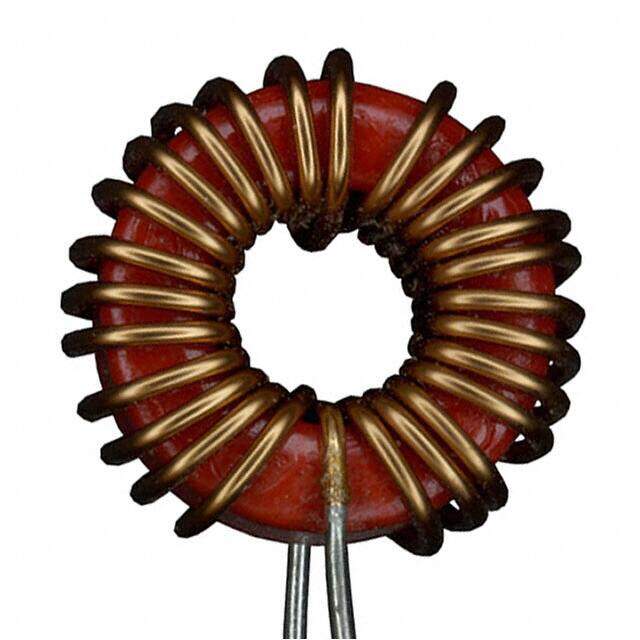

7447015 image
Favorite
7447015 image
Favorite
RoHS
RoHS RoHS compliant
Package Radial, Vertical (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-FI Radial Vertical (Open) 0.728Diax0.335W 18.50mmx8.50mm 35muH
PDF
/
Buying Options
Total Price: USD $2.09
Unit Price: USD $2.090458
≥1 USD $2.090458
≥10 USD $1.972133
≥100 USD $1.860502
≥500 USD $1.755185
≥1000 USD $1.655838
Inventory: 1115
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 20 Weeks

Physical

Mount Through Hole, Wire
Mounting Type Through Hole
Package / Case Radial, Vertical (Open)
Number of Pins 2
Material - Core Ferrite

Technical

Operating Temperature -40°C~105°C
Packaging Bulk
Series WE-FI
Size / Dimension 0.728Diax0.335W 18.50mmx8.50mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Through Hole
Type Toroidal
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Current Rating (Amps) 3A
Shielding Unshielded
Depth 9.5mm
Current Rating 3A
Lead Pitch 8mm
Inductance 35μH
Test Frequency 10kHz
DC Resistance (DCR) 25mOhm Max
Max DC Current 3A
Inductance Frequency - Test 10kHz
Inductance Tolerance 20%
RMS Current (Irms) 3A

Dimensions

Diameter 18.5mm
Length 18.5mm
Width 18.4912mm

Compliance

REACH SVHC Unknown
RoHS Status ROHS3 Compliant
