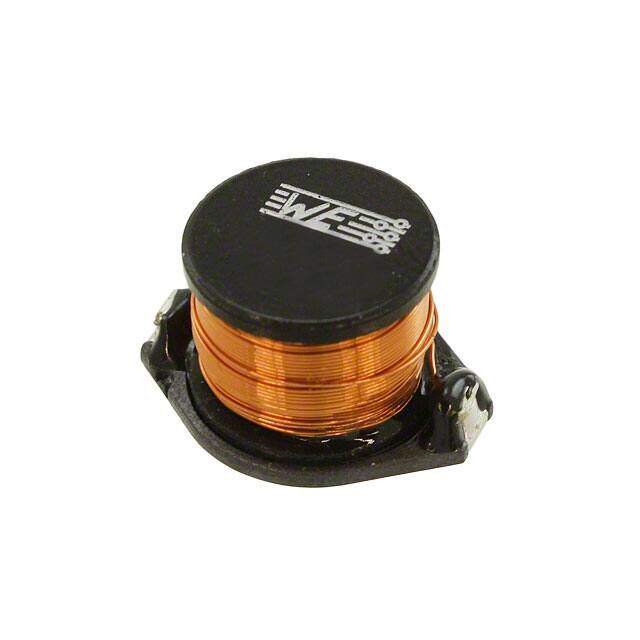

74458308
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-ASI Nonstandard 0.730Lx0.600W 18.54mmx15.24mm 8mH
PDF
/
Buying Options
Total Price: USD $22.02
Unit Price: USD $22.02005
≥1 USD $22.02005
≥10 USD $18.06805
≥100 USD $17.50375
≥500 USD $16.9385
≥1000 USD $16.3742
Inventory: 1132
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 15.24mm
Length 18.542mm
Height Seated (Max) 0.472 12.00mm
Height 12mm
Technical
RMS Current (Irms) 350mA
Inductance Tolerance 10%
Current - Saturation 600mA
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 410kHz
Max DC Current 350mA
DC Resistance (DCR) 8Ohm Max
Test Frequency 100kHz
Inductance 8mH
Lead Pitch 12.45mm
Current Rating 350mA
Shielding Unshielded
Current Rating (Amps) 350mA
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 6.8Ohm
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±10%
Size / Dimension 0.730Lx0.600W 18.54mmx15.24mm
Series WE-ASI
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 15 Weeks
