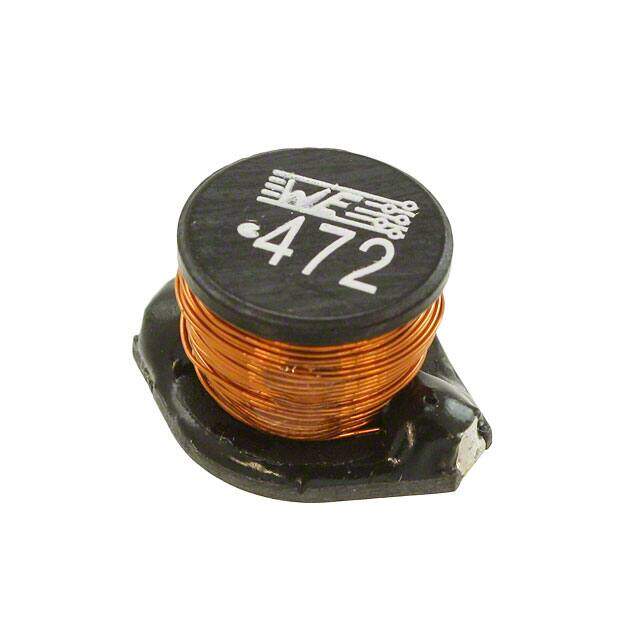

74458304
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-ASI Nonstandard 0.730Lx0.600W 18.54mmx15.24mm 4.7mH
PDF
/
Buying Options
Total Price: USD $1.61
Unit Price: USD $1.6112
≥1 USD $1.6112
≥10 USD $1.3224
≥100 USD $1.2806
≥500 USD $1.23975
≥1000 USD $1.19795
Inventory: 108
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 15.24mm
Length 18.542mm
Height Seated (Max) 0.472 12.00mm
Height 12mm
Technical
RMS Current (Irms) 400mA
Inductance Tolerance 10%
Current - Saturation 900mA
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 500kHz
Max DC Current 400mA
DC Resistance (DCR) 4.8Ohm Max
Test Frequency 100kHz
Inductance 4.7mH
Lead Pitch 12.45mm
Current Rating 400mA
Shielding Unshielded
Current Rating (Amps) 400mA
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 4Ohm
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±10%
Size / Dimension 0.730Lx0.600W 18.54mmx15.24mm
Series WE-ASI
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 15 Weeks
