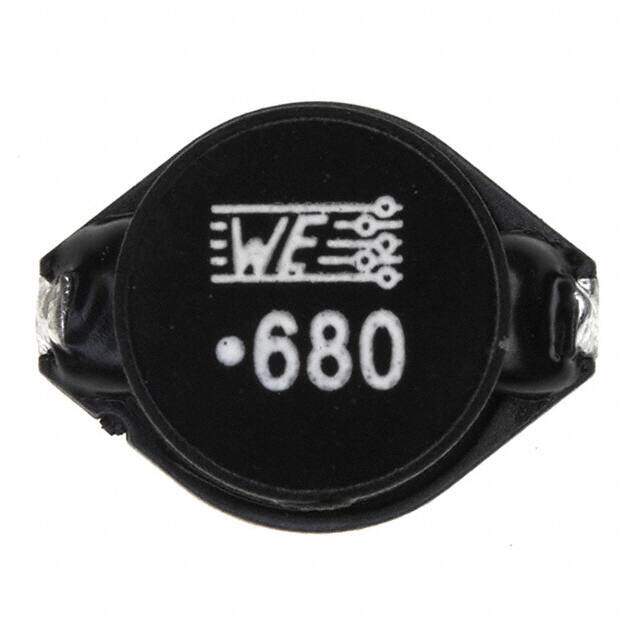

74458168
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD4 Nonstandard 0.730Lx0.600W 18.54mmx15.24mm 68muH
PDF
/
Inventory: 7379
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 24 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-PD4
Size / Dimension 0.730Lx0.600W 18.54mmx15.24mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Resistance 110mOhm
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 2.3A
Shielding Unshielded
Current Rating 2.3A
Inductance 68μH
Test Frequency 100kHz
DC Resistance (DCR) 130mOhm Max
Frequency - Self Resonant 7.2MHz
Inductance Frequency - Test 100kHz
Current - Saturation 3.6A
Inductance Tolerance 20%
RMS Current (Irms) 2.3A
Dimensions
Height Seated (Max) 0.280 7.11mm
Length 18.542mm
Width 15.24mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
