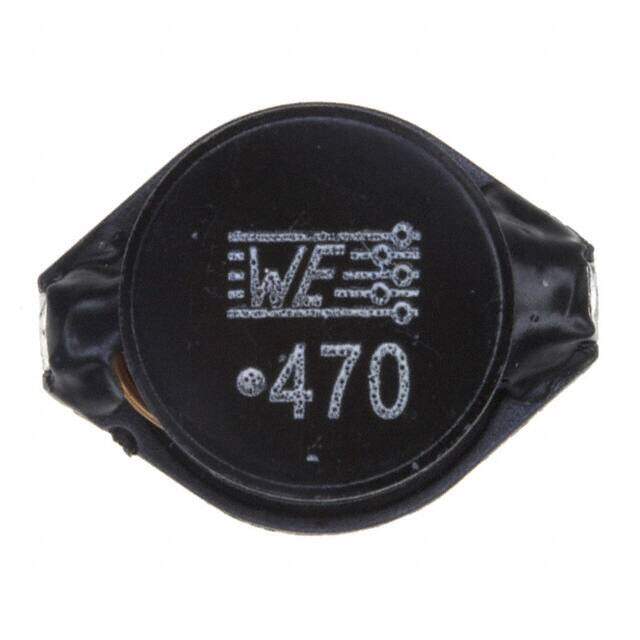

74458147
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD4 Nonstandard 0.730Lx0.600W 18.54mmx15.24mm 47muH
PDF
/
Buying Options
Total Price: USD $21.09
Unit Price: USD $21.09285
≥1 USD $21.09285
≥10 USD $17.3071
≥100 USD $16.76655
≥500 USD $16.22505
≥1000 USD $15.6845
Inventory: 1039
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 24 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-PD4
Size / Dimension 0.730Lx0.600W 18.54mmx15.24mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Resistance 76mOhm
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 2.6A
Shielding Unshielded
Current Rating 2.6A
Inductance 47μH
Test Frequency 100kHz
DC Resistance (DCR) 86mOhm Max
Frequency - Self Resonant 8.4MHz
Inductance Frequency - Test 100kHz
Current - Saturation 4.5A
Inductance Tolerance 20%
RMS Current (Irms) 2.6A
Dimensions
Height Seated (Max) 0.280 7.11mm
Length 18.542mm
Width 15.24mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
