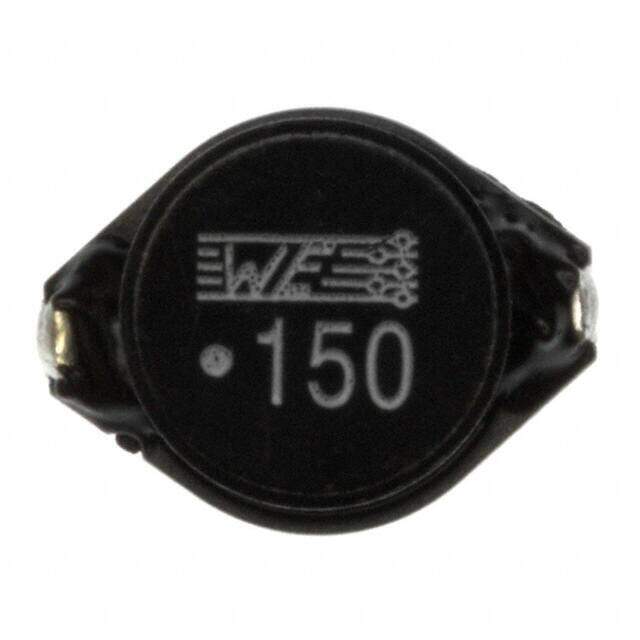

74458115
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD4 Nonstandard 0.730Lx0.600W 18.54mmx15.24mm 15muH
PDF
/
Buying Options
Total Price: USD $22.49
Unit Price: USD $22.48935
≥1 USD $22.48935
≥10 USD $18.4528
≥100 USD $17.87615
≥500 USD $17.2995
≥1000 USD $16.72285
Inventory: 5811
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 15.24mm
Length 18.542mm
Height Seated (Max) 0.280 7.11mm
Technical
RMS Current (Irms) 4A
Inductance Tolerance 20%
Current - Saturation 8A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 15MHz
DC Resistance (DCR) 36mOhm Max
Test Frequency 100kHz
Inductance 15μH
Current Rating 4A
Shielding Unshielded
Current Rating (Amps) 4A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 30mOhm
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.730Lx0.600W 18.54mmx15.24mm
Series WE-PD4
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 24 Weeks
