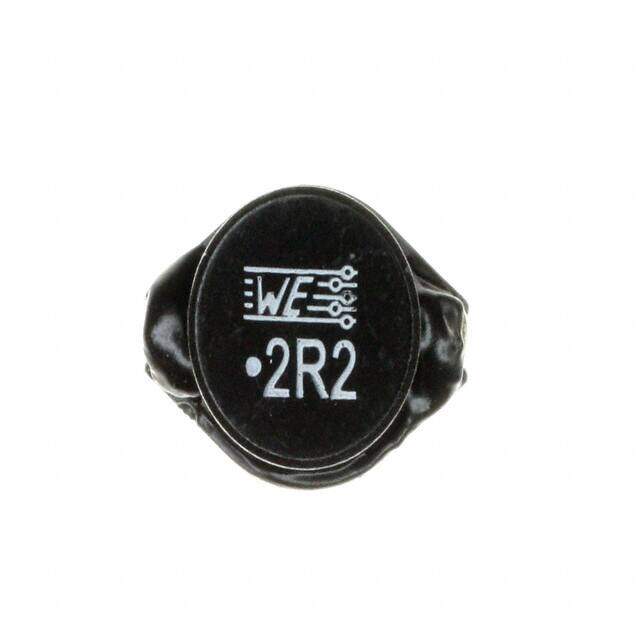

74458002 image
Favorite
74458002 image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-PD4 Nonstandard 0.730Lx0.600W 18.54mmx15.24mm 2.2muH
PDF
/
Inventory: 9662
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Width 15.24mm
Length 18.542mm
Height Seated (Max) 0.280 7.11mm
Height 7.112mm

Technical

RMS Current (Irms) 7.1A
Inductance Tolerance 20%
Current - Saturation 20.3A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 42MHz
Max DC Current 7.1A
DC Resistance (DCR) 14mOhm Max
Test Frequency 100kHz
Inductance 2.2μH
Current Rating 7.1A
Shielding Unshielded
Current Rating (Amps) 7.1A
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 8mOhm
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.730Lx0.600W 18.54mmx15.24mm
Series WE-PD4
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Material - Core Ferrite
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 24 Weeks
