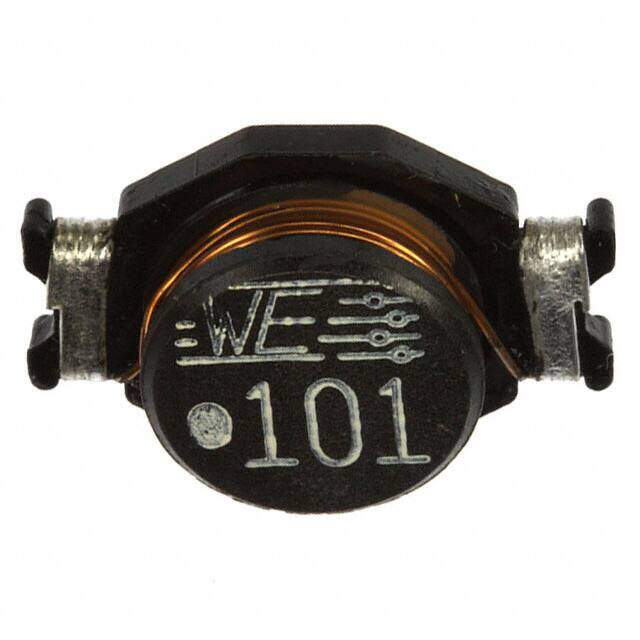

7445720
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD4 Nonstandard 0.866Lx0.591W 22.00mmx15.00mm 100muH
PDF
/
Buying Options
Total Price: USD $19.35
Unit Price: USD $19.34865
≥1 USD $19.34865
≥10 USD $15.87545
≥100 USD $15.37955
≥500 USD $14.88365
≥1000 USD $14.38775
Inventory: 6909
Minimum: 1
-
+
Technical Details
Technical
RMS Current (Irms) 2A
Inductance Tolerance 10%
Current - Saturation 3A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 6.5MHz
Max DC Current 2A
DC Resistance (DCR) 202mOhm Max
Test Frequency 100kHz
Inductance 100μH
Current Rating 2A
Depth 15mm
Shielding Unshielded
Current Rating (Amps) 2A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 168mOhm
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±10%
Size / Dimension 0.866Lx0.591W 22.00mmx15.00mm
Series WE-PD4
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Series Resistance 168MOhm
Physical
Material - Core Ferrite
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 16 Weeks
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 15.0114mm
Length 21.9964mm
Height Seated (Max) 0.307 7.80mm
Height 7mm
