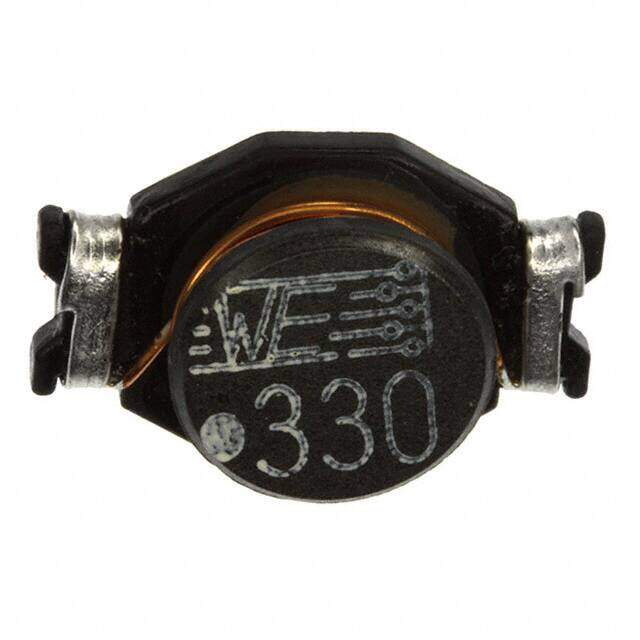

74457133
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD4 Nonstandard 0.866Lx0.591W 22.00mmx15.00mm 33muH
PDF
/
Buying Options
Total Price: USD $22.61
Unit Price: USD $22.6138
≥1 USD $22.6138
≥10 USD $18.55445
≥100 USD $17.97495
≥500 USD $17.39545
≥1000 USD $16.815
Inventory: 1099
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-PD4
Size / Dimension 0.866Lx0.591W 22.00mmx15.00mm
Tolerance ±15%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 3.4A
Shielding Unshielded
Depth 15.3mm
Current Rating 3.4A
Military Standard Not
Inductance 33μH
Test Frequency 100kHz
DC Resistance (DCR) 70mOhm Max
Max DC Current 3.4A
Frequency - Self Resonant 11.5MHz
Inductance Frequency - Test 100kHz
Current - Saturation 5.5A
DC Current 3.4A
Dimensions
Height 7mm
Height Seated (Max) 0.307 7.80mm
Length 21.9964mm
Width 15.0114mm
Compliance
RoHS Status ROHS3 Compliant
