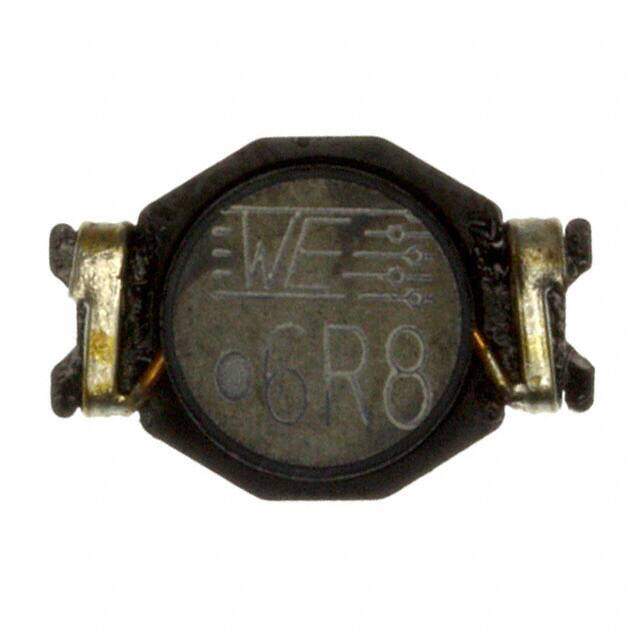

74457068
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD4 Nonstandard 0.866Lx0.591W 22.00mmx15.00mm 6.8muH
PDF
/
Buying Options
Total Price: USD $1.07
Unit Price: USD $1.07445
≥1 USD $1.07445
≥10 USD $0.8816
≥100 USD $0.85405
≥500 USD $0.8265
≥1000 USD $0.79895
Inventory: 260
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 15.0114mm
Length 21.9964mm
Height Seated (Max) 0.307 7.80mm
Height 7.0104mm
Technical
RMS Current (Irms) 7.5A
Inductance Tolerance 20%
Current - Saturation 12A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 26MHz
Max DC Current 7.5A
DC Resistance (DCR) 17mOhm Max
Test Frequency 100kHz
Inductance 6.8μH
Current Rating 7.5A
Depth 15mm
Shielding Unshielded
Current Rating (Amps) 7.5A
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 14.1mOhm
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.866Lx0.591W 22.00mmx15.00mm
Series WE-PD4
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 16 Weeks
